DK1200 Wifi Camera for Trinocular Microscope

The camera and large FOV dovetail mount are skillfully integrated, no more worrying about the adapter matching.

Products advantages
Integrated architecture, precise coupling beam splitting.
0.43X aberration correcting tube lens, precision par-focal mechanism. No damage to the original optical path.


High frame rate at full resolution, true color restoration.

Scalable link application and PC software
Mobile terminals or PCs are equipped with the dedicated software (or APP) can control the camera synchronously through 5G WiFi in the main board. They can handle multiple image outputs methods.

The output combination:
• USB+HDMI, 5G WiFi + Network. (12.0MP camera)

Note: both USB and WiFi cannot be the output at the same time

Description

Physical resolution 12.0MP
Image sensor SONY IMX412 CMOS
Exposure mode Rolling Shutter
Maximum resolution 4000×3000 (12,000,000Pixels)
ISO sensitivity Equivalent to 100-12800
Sensor size 1/2.3″
Pixel size 1.55μmx1.55μm
Spectral response 380-650nm
Exposure capability Real-time auto and manual RB adjustment
Exposure time 10μs-333ms
White balance Real-time auto and manual RB adjustment
Preview resolution 4000×3000@30fps, 3840×2160@30fps
Power supply DC 5V 3A
WiFi protocol 5G WiFi IEEE802.11ac
A/D convertsion bit depth 12bit
Software and App Windows Software: KoPa Capture Pro, App for mobiles: KoPa WiFi Lab

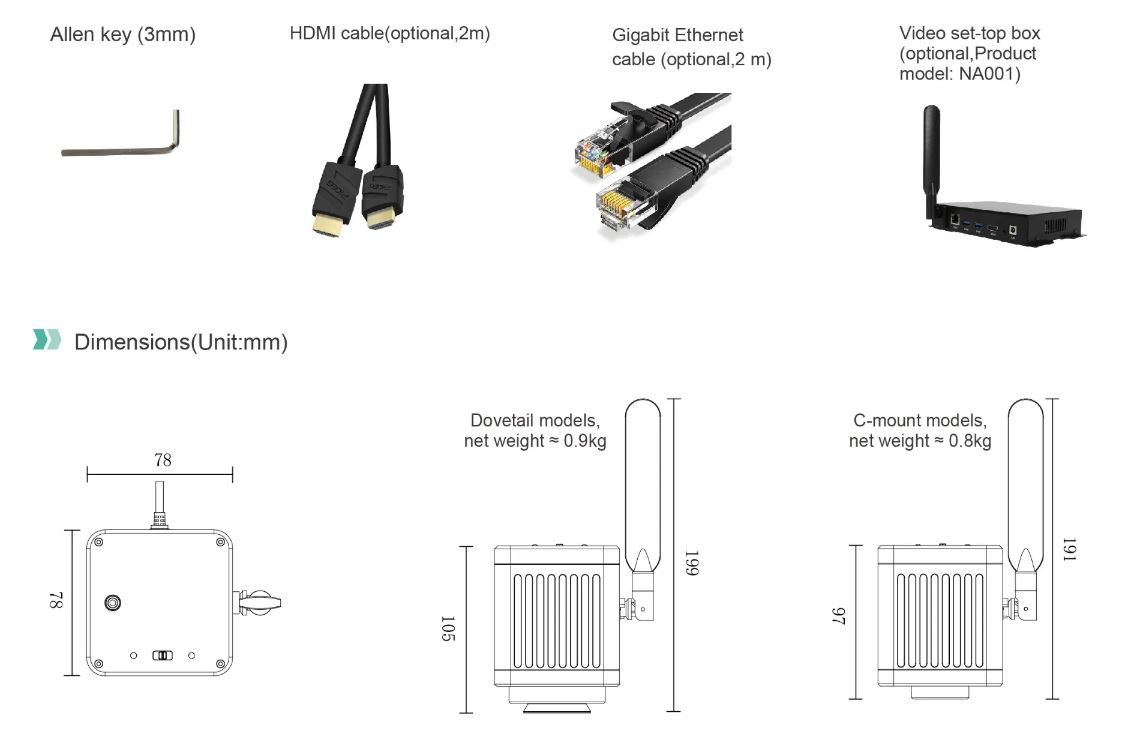

Components & Accessories

Additional information

Weight 1.0000 kg
Downloads

Double click to read at full screenDownload Manual (PDF)
