Description

EMZ-10H: Binocular Microscope Head + MA522: Eyepieces + F: Focus Block + S-4100: Stand

EMZ-10H: Microscope Head
The EMZ-10H is a new and improved high eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also uses a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X) Optional rubber eye guards (MA906) are also available. The EMZ-10H body has a long 110mm working length, an increase focal depth and a wide field number which makes it perfect for all applications ranging from industry and biological fields to education and training. Despite these advanced capabilities, the microscope operation is simple. It features Greenough optics for enhance image flatness and contrast. As a result, views of three dimensional surfaces are sharp with excellent depth characteristic. The EMZ-10H offers high resolution observation in precision-oriented semi-conductor, popular for mounting onto bonders and probers, and offers superior performance at low cost. In addition to its compact design and versatility, a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Suitable for eyeglass users.

MA522: Eyepieces
MA522 Super Widefield Eyepiece is included, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only)

F: Focus Block
Focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.

S-4100: Stand
The S-4100 Boom Stand is Meiji Techno America’s most popular Ergonomic boom stand with pillar, crossarm and a 20mm drop down mounting post accepts F, FX or FC holders, (must be ordered separately) or focus blocks with a 20mm mounting hole which are commonly available from microscope manufacturers. Equipped with a 400mm (15.74”) vertical pole and a 530mm (20.86”) horizontal pole. The S-4100 offers minimal space requirement and greatest possible amount of work room. The S-4100 can swing out of the way easily, clearing the workstation for other tasks. The horizontal arm can be moved freely left to right or can be securely locked into position with our T handle knobs. Extra length vertical posts are available in other models. The vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies. Anti-rotation is stabilized by a locking pin on the vertical post. The S-4100 Boom stand provides a comfortable amount of space for preparing mice, insects and other model organisms or semiconductor and electrical components. The S-4100 is equipped by a 35 lbs. base. The S-4100 boom stand is designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies. This boom stand is affordable; low cost with high quality safety features makes this boom stand unmatched value in its class. This stand has ample height and long reach to work on an inspect small to large parts under the microscope. Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless-steel columns make this boom stand an excellent choice in labs and production facilities.

EMZ-10H Body Info:

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 0.7x – 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x – 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm – 5.1mm
Working distance: 110mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x – 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 45mm – 332mm (With auxiliary lenses and eyepieces)
Mounting: Fits 84.5mm Diameter Focus Holders
Auxiliary Lenses: 0.3x (326mm), 0.4x (247mm), 0.5x (194mm), 0.75x (127mm), 1.5x (64mm), and 2.0x (44mm) (optional)

MA522: Eyepieces

MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)

MA522 Super Widefield High Eyepoint 10X (for EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount.

This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)

F: Block

Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies

S-4100: Boom Stand

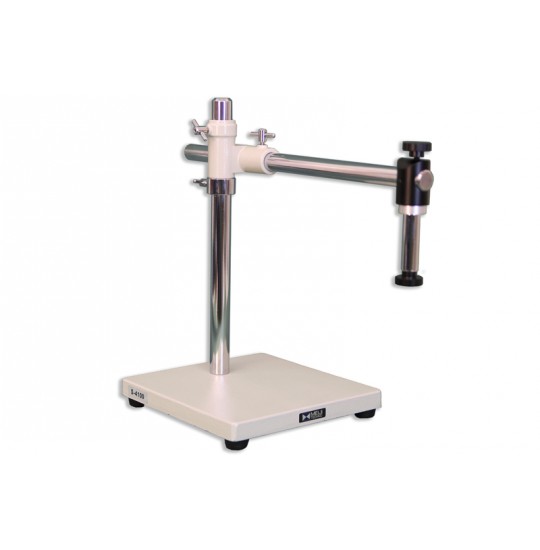

S-4100 Boom Stand

The S-4100 Boom Stand is Meiji Techno America’s most popular Ergonomic boom stand with pillar, crossarm and a 20mm drop down mounting post accepts F, FX or FC holders, (must be ordered separately) or focus blocks with a 20mm mounting hole which are commonly available from microscope manufacturers. Equipped with a 400mm (15.74”) vertical pole and a 530mm (20.86”) horizontal pole. The S-4100 offers minimal space requirement and greatest possible amount of work room. The S-4100 can swing out of the way easily, clearing the workstation for other tasks. The horizontal arm can be moved freely left to right or can be securely locked into position with our T handle knobs. Extra length vertical posts are available in other models. The vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies. Anti-rotation is stablilized by a locking pin on the vertical post. The S-4100 Boom stand provides a comfortable amount of space for preparing mice, insects and other model organisms or semiconductor and electrical components. The S-4100 is equipped by a 35 lbs. base. The S-4100 boom stand is designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies. This boom stand is an affordable; low cost with high quality safety features makes this boom stand unmatched value in its class. This stand has ample height and long reach to work on an inspect small to large parts under the microscope. Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless steel columns makes this boom stand an excellent choice in labs and production facilities.

The S-4100 Boom Stand features include:
• S-4100 Boom Stand is Meiji Techno America’s most popular Ergonomic boom stand with pillar, crossarm and 20mm drop down mounting post accepts F, FX or FC holders
• Minimal space requirement and greatest possible amount of work room
• Provides flexible horizontal and vertical movement for large to mid -sized specimens and electronic components
• S-4100 can swing out of the way easily, clearing the workstation for other tasks
• Safety Collar for vertical stability
• S-4100 Boom stand provides a comfortable amount of space for preparing mice, insects and other model organisms or semiconductor and electrical components
• Designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies
• Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless steel columns makes this boom stand an excellent choice in labs and production facilities
• High density rubber feet for vibration stability

Stereo Terminology

OPTIONAL ILLUMINATOR ACCESSORIES

RINGLIGHTS (OPTIONAL)
Model	MA962	MA964	MA961D/S/ESD (SLIMLINE)	MA961D/40 (40 LEDs)	MA961D/80/ESD (80 LEDs)	MA305/100

Light Type	LED	LED	LED	LED	LED	Fluorescent
White Light Options	Daylight	Daylight	Daylight, Cool White, Warm White	Daylight, Cool White, Warm White	Daylight, Cool White, Warm White,	Daylight, Warm White
Number of Bulbs	56	60	40	40	80	1
Wattage	3.5W	10W	4W	N/A	5W	8W
Input	100V-240V	100V-240V	100V-240V	100V-240V	100V-240V	100V-240V
Output	12V DC, 0.5A	10W	24V, -0.75A 18W max	24V, -0.75A 18W max	24V, -0.75A 18W max	8W
Inner Diameter	57mm (2.24″)	54.6mm (2.15″)	66.8mm (2.63″)	66.8mm (2.63″)	66.8mm (2.63″)	48mm (1.89″)
Outer Diameter	95.5mm (3.76″)	90mm (3.54″)	101mm (4.01″)	97mm (3.81″)	105mm (4.11″)	90mm (3.54″)
Height	31.75mm (1.25″)	22.8mm (0.9″)	28mm (1.09″)	26mm (1.02″)	26mm (1.02″)	15.8mm (0.662″)
Length	133.8mm (5.27″)	90mm (3.54″)	135mm (5.30″)	151mm (5.94″)	125mm (4.92″)	109mm (4.29″)
Needs Adapter Mount for EMZ Series (MA302)	Yes	No	Yes	No	No	Yes
Needs Adapter Mount for RZ Series (MA308)	Yes	No	Yes	No	No	Yes

DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model	FL151	FT191	FL-5000-DG	FQ151	FQ-5000-DG	TPI6IL

Light Type	Halogen	Halogen	LED	Halogen	LED	LED
Input	115 V AC (230 V AC available)	120 V AC (230 V AC available)	110 V AC (240V available)	115 V AC (220V available)	110 V AC (220V available)	90-264 VAC
Wattage	150 Watt, 21 V	150 Watt, 21V	150 Watt, 21V	150 Watt, 21V	150 Watt, 21V	5 Watt
Output	1750 Lumens at fiber optic plane	200 Watt (Max)	2000+ Lumens (12.7mm aperture)	150 Watt	80 Watt	500 Lumens
Fuse Type	3 Amp, 3A slow blow	2, 5 Amp slow blow	0.5A-1.2A	3Amp	2Amp	N/A
Color Temperature	3200K	3200K	5000K	3250K	5000K-8300K	6500K
Input Fiber Diameter	15mm or 25mm (optional)	15mm or 25mm (optional)	15mm or 25mm (optional)	15.8mm (0.625″) (other sizes available)	15.8mm (0.625″)	N/A
Light Guide Length	584mm (23″) self-supporting	584mm (23″) self-supporting	584mm (23″) self-supporting	609mm (24″) obedient arm	609mm (24″) obedient arm	482.60 mm (19″)
Active Fiber Bundle	0.20″ (5mm)	0.31″ (8mm)	0.20″ (5mm)	0.265” (4.76mm)	0.265” (4.76mm)	N/A
Dimensions	6.8” (W) X 5” (H) X 8.3” (D)	8” (W) X 4.75” (H) X 7” (D)	7.0” (W) X 4.9” (H) X 8.8” (D)	7.0” (W) X 6.5” (H) X 7.5” (D)	4.75″ (W) X 6″ (H) X 9″ (D)	4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height)
Weight	7.75lbs	13.5lbs	6lbs	7.5lbs	7 lbs	5.25lbs

ANNULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model	FL152	FT192	FL-5000-RL	FQ152	FQ-5000-DG

Light Type	Halogen	Halogen	LED	Halogen	LED
Input	115 V AC (230 V AC available)	120 V AC (230 V AC available)	110 V AC (240V available)	115 V AC (220V available)	110 V AC (220V available)
Wattage	150 Watt, 21 V	150 Watt, 21V	150 Watt, 21V	150 Watt, 21V	150 Watt, 21V
Output	1750 Lumens at fiber optic plane	200 Watt (Max)	2000+ Lumens (12.7mm aperture)	150 Watt	80 Watt
Fuse Type	3 Amp, 3A slow blow	2, 5 Amp slow blow	0.5A-1.2A	3Amp	2Amp
Color Temperature	3200K	3200K	5000K	3250K	5000K-8300K
Input Fiber Diameter	15mm or 25mm (optional)	15mm or 25mm (optional)	15mm or 25mm (optional)	15.8mm (0.625″) (other sizes available)	15.8mm (0.625″)
Light Guide Length	914.4mm (36″)	914.4mm (36″)	914.4mm (36″)	914.4mm (36″)	914.4mm (36″)
Active Fiber Bundle	9.5mm (0.373”)	10mm (0.394″)	9.5mm (0.373”)	9.45mm (0.371″)	9.45mm (0.371″)
Diameter Ring Aperture	60.2mm (2.37″)	60mm (2.36″)	60.2mm (2.37″)	60mm (2.36″)	60mm (2.36″)
Dimensions	6.8” (W) X 5” (H) X 8.3” (D)	8” (W) X 4.75” (H) X 7” (D)	7.0” (W) X 4.9” (H) X 8.8” (D)	7.0” (W) X 6.5” (H) X 7.5” (D)	4.75″ (W) X 6″ (H) X 9″ (D)
Weight	7.75lbs	13.5lbs	6lbs	7.5lbs	7 lbs

SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model	FL153	FT193	FL-5000-SG

Light Type	Halogen	Halogen	LED
Input	115 V AC (230 V AC available)	120 V AC (230 V AC available)	110 V AC (240V available)
Wattage	150 Watt, 21 V	150 Watt, 21V	150 Watt, 21V
Output	1750 Lumens at fiber optic plane	200 Watt (Max)	2000+ Lumens (12.7mm aperture)
Fuse Type	3 Amp, 3A slow blow	2, 5 Amp slow blow	0.5A-1.2A
Color Temperature	3200K	3200K	5000K
Input Fiber Diameter	15mm or 25mm (optional)	15mm or 25mm (optional)	15mm or 25mm (optional)
Light Guide Length	457.2mm (18″)	508mm (24″)	457.2mm (18″)
Active Output Fiber Bundle	6.35mm (0.25″)	6.35mm (0.25″)	6.35mm (0.25″)
Dimensions	6.8” (W) X 5” (H) X 8.3” (D)	8” (W) X 4.75” (H) X 7” (D)	7.0” (W) X 4.9” (H) X 8.8” (D)
Weight	7.75lbs	13.5lbs	6lbs

EM STEREO SERIES BROCHURE

(CLICK TO DOWNLOAD FULL BROCHURE)

Additional information

Specifications	Includes: • Binocular Body (EMZ-10H) • 10X Eyepiece (MA522) • Focus Block (F) • Boom Stand (S-4100) • Meiji Techno Dust Cover (MA703) • Rubber Eyeguards/Eyeshields (Paired) (MA600) • EMZ Meiji Techno Instruction Manual • Limited Lifetime Warranty Card Product Information: Manufacturer: MADE IN JAPAN Warranty: LIMITED LIFETIME WARRANTY
Details	Modular Flexibility: EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today. Superb Optics: Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line. Rugged Dependability: All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products. Ergonomic Design: All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements. Applications: EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!
Lighting Options	Replacement Bulbs Listed by Part Number NOTE: The size of these images will vary and some images have been re-sized to fit this page. Do not rely on the size of these images to determine which bulb you need. NOTE: Incident light shines down from above; transmitted light shines up through the specimen from below. MA111 MA260/05 MA261/SL-10 MA263/05 MA263/10 MA264/05 MA275/05 Part Number Description Application MA111 12V 10W Incident light:ST-3, SKT-1B, SKT-2B, SKT-3B, GS2000 Incident & transmitted light: SKT-BT, SKT-2BT, SKT-3BT Transmitted light: STC-3 MA260/05 6V 20W Halogen For MA260, MA264H, and MA264EX illuminators MA261/SL-10 115V 20W For "B" Stand and MA261/35 (TM200 Series illuminator) MA263/05 115V 30W For MA263 illuminators MA263/10 220/240V 30W For MA263 illuminators MA264/05 6.5V 2.75A For MA264 illuminators MA275/05 12V 50W For ML5000 Series 50W models; ML7500, ML8500 All MT7500, MT8500 series MA305/05 MA309/05 MA326 MA350/10 MA350/20 MA361/10 MA362/10 Part Number Description Application MA305/05 8W Ring Fluorescent For MA305/100, MA305/200 ring fluorescent illuminators MA309/05 4W Tube Fluorescent For MA309 fluorescent box illuminators for GEM stand MA326 6V 30W Halogen (G4 base type) For ML2000 and ML5000 Series 30W models; all VT Series Models, IM7100, IM7200, ML2000, ML7000, ML8000, ML9000, TC5100, TC5200, TC5300, TC5400, TC5500, TC5600 All MT Series 30W models; all RZT & RZDT Stands MA350/10 115V 30W For GEM stand transmitted light MA350/20 220/240V 30W For GEM stand transmitted light MA361/10* 110V 20W Half-silvered bulb for TM400 Series 20W models (DISCONTINUED) MA361/20* 220/240V 20W Half-silvered bulb for TM400 Series 20W models MA362/10* 115V 30W Half-silvered bulb for TM400 Series 30W models (DISCONTINUED) MA362/20* 220/240V 30W Half-silvered bulb for TM400 Series 30W models(DISCONTINUED) MA560 MA561 MA570 FL180/70 FL150/70 MA357 MA358 MA590 Part Number Description Application MA560 6V 1.2A Tungsten Incident light: AB, ABZ, PB Stands All BM/BMK Series models MA561 6V 1.2A Tungsten Transmitted light: AB, ABZ, PB Stands Note: MA560 and MA561 may appear to be identical, but they are not interchangeable. MA570 6V 10W Halogen Incident & transmitted light: ABE, ABH, ABZH, PBH Stands FL150/70 21V 150W Halogen For Fiber Optic Light sources: All FT190 and FL150 Series FL180/70 21V 150W Halogen For FL180, FL181 & FL182 fiber optic illuminators MA357 8V 12W Tungsten Frosted – Fits Meiji Techno MT5500 Series Microscopes MA358 8V 12W Tungsten Clear – Fits Meiji Techno MT5500 Series Microscopes MA590 110V 15W Tungsten Frosted – Fits Meiji Techno PBM Series Stands DC Arc Lamps Part Number Description Application BA005 HBO 100W Mercury DC Arc Lamp TC5000 Series & MT6000 Series Equipped with Epi-Fluorescence Lamphouses BA013 XBO 75W Xenon DC Arc Lamp BA014 XBO 100W Xenon DC Arc Lamp BA005 Information: Brand: Ushio Technology: Short-Arc Mercury Useful Life Hours: 200 Lumen Output: 2200 Actual Wattage: 100 Voltage: 20 Base Type: SFa7.5+SFa9 Length (Inch): 3.54 Diameter (Inch): .394Manufacturers Notes: The HBO 100W BA005 is a Mercury Arc 20V 100 W Lamp with a SFa7.5-2 base This product is also a direct replacement for the following items: 100W OSRAM HBO MICROSCOPE 4050300507095 ALB UPC LER38445 ALB UPC: LER38445 ALB UPC:LER38445 AMERICAN OPTICAL 2087 BULB DENTSPLY ULTRA CURE 100 EFOS ULTRA CURE 100 EFOS ULTRA CURE 100 BULB HANOVIA HGH100W2 BULB HBO 100W/2 HBO 100W/2 BULBS HBO 100W/2 LIGHT BULB HBO 100W/2 MERCURY LAMP HBO 100W/2 OSRAM BULB HBO 100W/2 OSRAM BULBS HBO.100W.2 HBO100W/2 HBO100W/2 BULB HBO100W/2 LAMP HBO100W/L2 HBO100W2 JENA HBO 101/2 BULB LD CAULK ULTRA CURE 100 LEICA 2087 LEICA 2087 BULB LAMP LEICA 2087-001 BULB LEICA 3040-0380 BULB LEICA 500-138 BULB LEICA 500138 LEICA DMRBE BULB LEITZ 2087 BULB LEITZ 2087-001 BULB LEITZ 3040-0380 BULB LEITZ 500-138 LEITZ 500-138 BULB LAMP LEITZ DMRBE BULB LAMP LER38445 LITE SOURCE LS-97 BULB M5000-133 MICROSTAR IV MICROSCOPE MICROVISION 804-137-001 MITEY LITE AMERICAN OPT NARVA HBO 101/2 BULB NIKON 1996G7 BULB NIKON 235915 BULB NIKON 5554-0102 BULB NIKON 78589 BULB NIKON DS-EPI-FL2 BULB NIKON EPI FL BULB LAMP NIKON LABOPHOT-2 MAIN NIKON PHOTOLAB II BULB OLYMPUS 8-B192 BULB OLYMPUS 8229 BULB OLYMPUS 8B192 OLYMPUS BH RFL BULB OLYMPUS BH2-RFC BULB OLYMPUS BH2-RFL BULB OLYMPUS BX40F BULB OLYMPUS IMTZ-RFL BULB OM100W2L2 OM100WL2 OPTI QUIP 1500 BULB OPTI QUIP BA-005 BULB ORC AHD-100 BULB LAMP OSRAM 1 X HBO 100 W/2 OSRAM 69217 OSRAM 69217-0 OSRAM 692170 OSRAM BULBS HBO 100W/2 OSRAM HB0100 W/2 OSRAM HBO 100 W/2 OSRAM HBO 100W/2 OSRAM HBO100W/2 OSRAM LAMP HBO 100 W/2 OSRAM LAMP HBO100W/2 OSRAM REPLACEMENT HBO100W2 OSRAM SYLVANIA 69217 BULB OSRAM SYLVANIA HBO100W/2 PHILIPS CS100W/2 BULB PLASMARC 100-5052 BULB QL-0102/05 REICHERT M5000/133 BULB SFA7,5-2 OSRAM SYLVANIA 69217 SYLVANIA HBO 100 W/2 SYLVANIA HBO 100W/2 UPC 4050300507095 UPC LER38445 UPC: 4050300507095 UPC: LER38445 UPC:4050300507095 UPC:LER38445 VAN BRAUGHT HSA 100 BULB WETZLAR 2087 BULB LAMP WETZLAR 2087-001 BULB WETZLAR 3040-0380 BULB WETZLAR 500-138 BULB WETZLAR DMRBE BULB WILD 2087 BULB LAMP WILD 2087-001 BULB WILD 3040-0380 BULB WILD 500-138 BULB WILD DMRBE BULB XENON L 117 BULB LAMP XENON LM/100-2 BULB ZEISS 1007-975 BULB ZEISS 2800-18-4060D ZEISS 38-00-18-4050 ZEISS 38-00-18-4060 ZEISS 38-00-18-4060D ZEISS 38-02-13 BULB ZEISS 38-16-13 BULB ZEISS 38-16-16 BULB ZEISS 3800-18-4050 ZEISS 3800-18-4060 ZEISS 3800184060 ZEISS 381613 ZEISS 9108491003 ZEISS AXIOSCOPE BULB LAMP *Discontinued – subject to stock on hand Click HERE for more Bulb info. Light bulbs in microscope illuminators need to be replaced periodically. The bulbs on this page are most commonly used in Meiji Techno illumination systems. If you own a Meiji microscope and need a replacement, you should be able to purchase it at your local Meiji Dealer. Some older models or specialized microscopes may use bulbs that are not listed here. If you cannot find the correct bulb, please contact our technical support staff to assist you. Click HERE for information on Lamp Safety, Handling and Disposal. Tips on extending bulb life Bulbs have a rough life in a microscope: burning in an enclosed area for hours on end with a finite lifetime, the effects of too much heat and not enough ventilation, DC current from the dimmer circuit slowly thinning the metal of the filament. And with bulbs nowadays being manufactured more and more cheaply, the cumulative effect is not good for bulb longevity. If the bulb is halogen or DC Arc Lamp type, DO NOT TOUCH THE GLASS with your bare hands when installing bulbs. Use the plastic bag it comes in to install the bulb. DO NOT jar or bump or run your scope in an environment that has excessive vibration. Turn your scope off if you do not need it on. Some bulbs have a rated life of only 100 – 200 hours so if you use your scope full time, be prepared to use bulbs. Halogen bulbs in microscopes and fiber optic light sources can also have problems if the socket is worn out; i.e. the connection cannot sink enough heat away from the bulb and/or the electrical connection is weak. If your scope is an old workhorse who's starting to eat bulbs, check the bulb socket out for poor contact and discoloration of the contact. The bi-pin type bulb should push stiffly into the socket. If not, or if it wobbles around excessively, the socket is too old and needs replacement.

Specifications

Includes:
• Binocular Body (EMZ-10H)
• 10X Eyepiece (MA522)
• Focus Block (F)
• Boom Stand (S-4100)
• Meiji Techno Dust Cover (MA703)
• Rubber Eyeguards/Eyeshields (Paired) (MA600)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty Card

Product Information:
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY

Details

Modular Flexibility:
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.

Superb Optics:
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.

Rugged Dependability:
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.

Ergonomic Design:
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.

Applications:
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!

Lighting Options

Replacement Bulbs Listed by Part Number
NOTE: The size of these images will vary and some images have been re-sized to fit this page. Do not rely on the size of these images to determine which bulb you need. NOTE: Incident light shines down from above; transmitted light shines up through the specimen from below.
