Description
EMZ-10H: Binocular Microscope Head + MA522: Eyepieces + PC: Stand
EMZ-10H: Microscope Head
The EMZ-10H is a new and improved high eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also uses a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X) Optional rubber eye guards (MA906) are also available. The EMZ-10H body has a long 110mm working length, an increase focal depth and a wide field number which makes it perfect for all applications ranging from industry and biological fields to education and training. Despite these advanced capabilities, the microscope operation is simple. It features Greenough optics for enhance image flatness and contrast. As a result, views of three dimensional surfaces are sharp with excellent depth characteristic. The EMZ-10H offers high resolution observation in precision-oriented semi-conductor, popular for mounting onto bonders and probers, and offers superior performance at low cost. In addition to its compact design and versatility, a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Suitable for eyeglass users.
MA522: Eyepieces
MA522 Super Widefield Eyepiece is included, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only)
PC: Pole Stand
Is included PC stand in Meiji Techno America’s basic precision pole stand with “FC” focusing holder with coaxial coarse and fine focus block mounted on a plain base. This stand is designed for applications where precise fine focus adjustment is required. It accepts our EMZ, EMT and EMF stereomicroscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The PC stands compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built-in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.
EMZ-10H Body Info:
Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 0.7x – 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x – 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm – 5.1mm
Working distance: 110mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x – 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 45mm – 332mm (With auxiliary lenses and eyepieces)
Mounting: Fits 84.5mm Diameter Focus Holders
Auxiliary Lenses: 0.3x (326mm), 0.4x (247mm), 0.5x (194mm), 0.75x (127mm), 1.5x (64mm), and 2.0x (44mm) (optional)
MA522: Eyepieces
MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)
MA522 Super Widefield High Eyepoint 10X (for EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount.
This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)

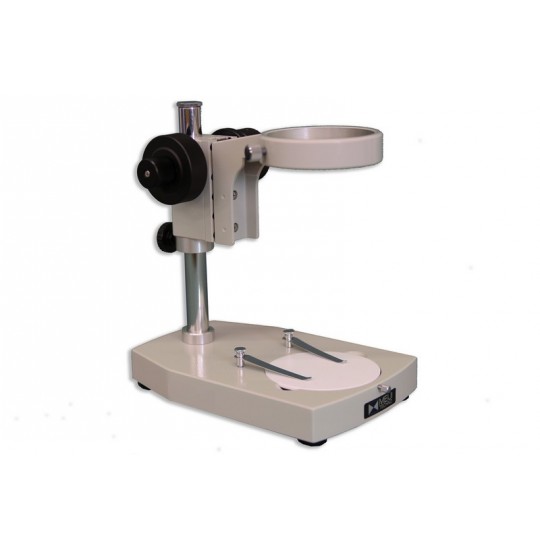

PC: Stand
The PC Pole Stand with FC Focus Block/Holder stand in Meiji Techno America’s basic precision pole stand with “FC” focusing holder with coaxial coarse and fine focus block mounted on a plain base. This stand is designed for applications where precise fine focus adjustment is required. It accepts our EMZ, EMT and EMF stereomicroscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The PC stands compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.
Dimensions: 150mm (5.9″) wide by 230mm (9.05″) deep
Pillar Height: 9” height -20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: FC Focus Holder Block with coaxial coarse and fine focusing slide block included with 84.2 mm diameter opening which accepts 84 mm stereo body. Rack and pinion mount allows smooth precise focusing over 33mm of travel, fits 20mm mounting post. Coarse focus mechanism incorporates a slip clutch and tension adjustment (FC holder)
Illumination Port: No illumination, requires an external illuminator for lighting
OPTIONAL ILLUMINATOR ACCESSORIES
| RINGLIGHTS (OPTIONAL) | ||||||
| Model | MA962 | MA964 | MA961D/S/ESD (SLIMLINE) | MA961D/40 (40 LEDs) | MA961D/80/ESD (80 LEDs) | MA305/100 |
 |
 |
 |
 |
 |
 |
|
| Light Type | LED | LED | LED | LED | LED | Fluorescent |
| White Light Options | Daylight | Daylight | Daylight, Cool White, Warm White |
Daylight, Cool White, Warm White |
Daylight, Cool White, Warm White, |
Daylight, Warm White |
| Number of Bulbs | 56 | 60 | 40 | 40 | 80 | 1 |
| Wattage | 3.5W | 10W | 4W | N/A | 5W | 8W |
| Input | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V |
| Output | 12V DC, 0.5A | 10W | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 8W |
| Inner Diameter | 57mm (2.24″) | 54.6mm (2.15″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 48mm (1.89″) |
| Outer Diameter | 95.5mm (3.76″) | 90mm (3.54″) | 101mm (4.01″) | 97mm (3.81″) | 105mm (4.11″) | 90mm (3.54″) |
| Height | 31.75mm (1.25″) | 22.8mm (0.9″) | 28mm (1.09″) | 26mm (1.02″) | 26mm (1.02″) | 15.8mm (0.662″) |
| Length | 133.8mm (5.27″) | 90mm (3.54″) | 135mm (5.30″) | 151mm (5.94″) | 125mm (4.92″) | 109mm (4.29″) |
| Needs Adapter Mount for EMZ Series (MA302) | Yes | No | Yes | No | No | Yes |
| Needs Adapter Mount for RZ Series (MA308) | Yes | No | Yes | No | No | Yes |
| DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | ||||||
| Model | FL151 | FT191 | FL-5000-DG | FQ151 | FQ-5000-DG | TPI6IL |
 |
 |
 |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED | Halogen | LED | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) | 90-264 VAC |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 5 Watt |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt | 500 Lumens |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp | N/A |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K | 6500K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) | N/A |
| Light Guide Length | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 609mm (24″) obedient arm | 609mm (24″) obedient arm | 482.60 mm (19″) |
| Active Fiber Bundle | 0.20″ (5mm) | 0.31″ (8mm) | 0.20″ (5mm) | 0.265” (4.76mm) | 0.265” (4.76mm) | N/A |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) | 4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs | 5.25lbs |
| ANNULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||||
| Model | FL152 | FT192 | FL-5000-RL | FQ152 | FQ-5000-DG |
 |
 |
 |
 |
|
|
| Light Type | Halogen | Halogen | LED | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) |
| Light Guide Length | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) |
| Active Fiber Bundle | 9.5mm (0.373”) | 10mm (0.394″) | 9.5mm (0.373”) | 9.45mm (0.371″) | 9.45mm (0.371″) |
| Diameter Ring Aperture | 60.2mm (2.37″) | 60mm (2.36″) | 60.2mm (2.37″) | 60mm (2.36″) | 60mm (2.36″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs |
| SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||
| Model | FL153 | FT193 | FL-5000-SG |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A |
| Color Temperature | 3200K | 3200K | 5000K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) |
| Light Guide Length | 457.2mm (18″) | 508mm (24″) | 457.2mm (18″) |
| Active Output Fiber Bundle | 6.35mm (0.25″) | 6.35mm (0.25″) | 6.35mm (0.25″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) |
| Weight | 7.75lbs | 13.5lbs | 6lbs |
