Key Components

  • EMZ-13H Binocular Head with High Eye point – binocular stereo zoom microscope head offering 1×–7× magnification, high eye-relief eyepieces, and a 90 mm working distance, designed to provide clear 3D viewing for detailed inspection and practical work.
  • MA522 Eyepieces – High eye point pair of 10× Super Widefield eyepieces that deliver a broad, clear view.
  • FS Focus Block – A tilting rack‑and‑pinion focus mount with smooth, adjustable focusing travel.
  • S‑2300 boom stand – A universal dual‑arm boom stand for flexible, overhead positioning over work areas.

Optical Performance

  • Zoom range: 1×–7× (continuous, 7:1 ratio)
  • Total magnification: ~10×–70× (with 10× eyepieces)
  • Eyepieces: MA522 10× high-eyepoint (long eye relief, glasses-friendly)
  • Working distance: 90 mm (room for tools under lens)
  • Optical design: Greenough stereo (true depth perception)
  • Field of view: ~23 mm → 3.2 mm (wide → detailed)
  • Image behavior: Parfocal (stays focused), parcentered (stays centered)

What It Does

The EMZ-13H series is used for precision inspection and hands-on microscale work, where users need a clear 3D magnified view to examine and manipulate small parts, making it ideal for applications such as electronics assembly and PCB soldering, semiconductor and medical device inspection, quality control in manufacturing, jewelry and watch repair, and laboratory or industrial R&D tasks, because it provides a stable zoom range, good depth perception, and enough working distance to safely use tools under the microscope while working on delicate components.



CLICK OR SCAN QR HERE!



Brochure        Video        Manual



NOTE: The versatility of a Meiji Techno Stereo Microscope is the ability to pick from a wide range of components to adapt to your unique application:
• Stereo Microscope Body (Zoom, Turret or Fixed)
• Eyepieces (Requires 2 of identical magnification)
• Stand (Pole stands, rigid arm stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands)
• Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
• Auxiliary Lens (Optional)

Made In Japan

ceisorohs

SKU: EMZ-13H + MA522 + FS + S-2300 Category:

Description

EMZ-13H: Binocular Microscope Head + MA522: Eyepieces + FS: Focus Block + S-2300: Stand

EMZ-13H: Microscope Head
The EMZ-13H is a new and improved high eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also uses a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X) Optional rubber eye guards (MA906) are also available. The EMZ-13H body offers an extended zoom ratio of 7:1, the highest in its series. Its modular design enables the user to select magnification from 3x – 420x. Because it has a large zoom range, the user can expect superb optical performance and maneuverability. The paired objectives are parfocalled and parcentered that guarantee observation of high resolution images throughout a wide magnification range. The EMZ-13H series offer working distances from 34mm – 252mm. It employs Greenough optics for improved image flatness and contrast. As a result images are brighter and more distinct even at the periphery of the field of view. The EMZ-13H is suitable for precision-oriented semi-conductor, medical device and routine inspection. In addition to its compact design and versatility, a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any work/lab application. Also suitable for eyeglass users.

MA522: Eyepieces
MA522 Super Widefield Eyepiece is included, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only)

FS: Focus Block
FS Coarse Focus Block/Holder is a tilting focus holder with 15.8mm (5/8″ bonder pin) diameter. Rack and pinion mount allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Uses 15.8mm (5/8″) diameter, 34.5mm long mounting pin. The 84.2mm diameter opening accepts all EM Series stereo bodies.

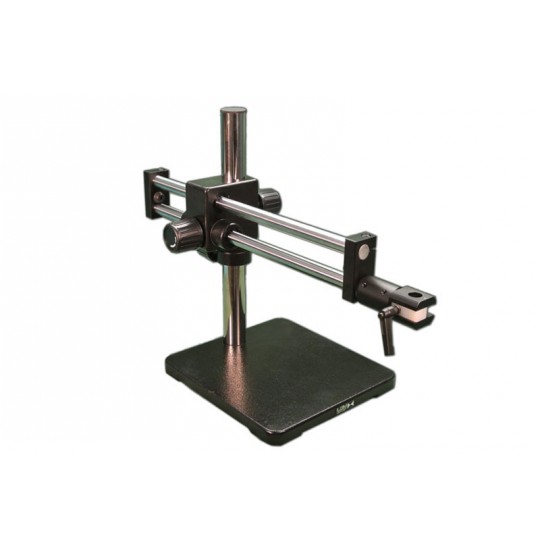

S-2300: Dual Arm Stand
S-2300 Universal dual arm boom stand with 5/8″ bonder pin acceptance for FS, FSC, FS/76, CZ-76/58 holder, vertical pole 15.11″ (384mm) Diameter 1.46″ (37-2mm), horizontal arm 21.5″ (544mm). Base 285x260x18mm, 40lbs

EMZ-13H Body Info:

emz-13h

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 7:1
Zoom Range: 1x – 7x
Zoom Knobs Markings: 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4, 5, 6, 7
Zoom Control: Dual, graduated, bilateral
Magnification: 10x – 70x  (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 23mm – 3.2mm
Working distance: 90mm
Eyetube Inclination: 45°
Eyepieces: High Eyepoint 10x, (MA522- Paired) (required)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 3x – 420x (With auxiliary lenses and eyepieces)
Extended Working Distances: 32mm – 230mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY



MA522: Eyepieces

MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)

MA522 Super Widefield High Eyepoint 10X (for EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount.

This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)

FS: Focus Block

FS Coarse Focus Block/Holder with 5/8" bonder pin diameter, 84.2mm Inner Diameter Ring for all EM series

FS Coarse Focus Block/Holder is a tilting focus holder with 15.8mm (5/8″ bonder pin) diameter. Rack and pinion mount allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment.

Uses 15.8mm (5/8″) diameter, 34.5mm long mounting pin. The 84.2mm diameter opening accepts all EM Series stereo bodies.

Focusing holders hold the microscope body and contain the mechanism that raises or lowers the body to focus on the specimen. Complete stands include their own focusing holders. But for other kinds of tasks, however, it may be necessary to mount the microscope body on a boom arm stand or directly onto a machine or some other surface. The focusing holders below offer a range of options for such applications.

FOCUS BLOCKS (84.5mm Inner diameter/ 0.2mm revolution fine focus/ fits 5/8″ female bonder pin adapter)
FS: Inclinable coarse focusing slide block with 5/8″ diameter mounting bonder pin to hold the stereo body on machines or for special applications (For use with S-4300, S-4400, S-1300, S-2300, BAS-3, SAS-3, SAS-4, and SAS-7 stands)

S-2300: Dual Arm Stand

S-2300 Universal dual arm boom stand with 5/8" bonder pin acceptance

S-2300 Universal dual arm boom stand with 5/8″ bonder pin acceptance for FS, FSC, FS/76, CZ-76/58 holder, vertical pole 15.11″ (384mm) Diameter 1.46″ (37-2mm), horizontal arm 21.5″ (544mm). Base 285x260x18mm, 40lbs

Stereo Terminology

Components & Accessories

Eyepieces Stands Focus Blocks Holder Auxiliary Lens Illuminators
Eyepieces (Stereo/Compound) Stands Focus Blocks Holder Auxiliary Lenses Illuminators
Micrometer Lens Stages Polarizing Accessories Protective Glass Covers Cameras
Micrometer Lens Stages Polarizing Accessories Protective Glass Covers Microscopy Cameras
C" Mounts/Camera Adapters Filters C" Mounts/Camera Adapters
C” Mounts/Camera
Adapters		 Filters Accessories



OPTIONAL ILLUMINATOR ACCESSORIES

RINGLIGHTS (OPTIONAL)
Model MA962 MA964 MA961D/S/ESD (SLIMLINE) MA961D/40 (40 LEDs) MA961D/80/ESD (80 LEDs) MA305/100
Light Type LED LED LED LED LED Fluorescent
White Light Options Daylight Daylight Daylight,
Cool White,
Warm White		 Daylight,
Cool White,
Warm White		 Daylight,
Cool White,
Warm White,		 Daylight,
Warm White
Number of Bulbs 56 60 40 40 80 1
Wattage 3.5W 10W 4W N/A 5W 8W
Input 100V-240V 100V-240V 100V-240V 100V-240V 100V-240V 100V-240V
Output 12V DC, 0.5A 10W 24V, -0.75A 18W max 24V, -0.75A 18W max 24V, -0.75A 18W max 8W
Inner Diameter 57mm (2.24″) 54.6mm (2.15″) 66.8mm (2.63″) 66.8mm (2.63″) 66.8mm (2.63″) 48mm (1.89″)
Outer Diameter 95.5mm (3.76″) 90mm (3.54″) 101mm (4.01″) 97mm (3.81″) 105mm (4.11″) 90mm (3.54″)
Height 31.75mm (1.25″) 22.8mm (0.9″) 28mm (1.09″) 26mm (1.02″) 26mm (1.02″) 15.8mm (0.662″)
Length 133.8mm (5.27″) 90mm (3.54″) 135mm (5.30″) 151mm (5.94″) 125mm (4.92″) 109mm (4.29″)
Needs Adapter Mount for EMZ Series (MA302) Yes No Yes No No Yes
Needs Adapter Mount for RZ Series (MA308) Yes No Yes No No Yes
DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model FL151 FT191 FL-5000-DG FQ151 FQ-5000-DG TPI6IL
Light Type  Halogen Halogen LED Halogen LED LED
Input 115 V AC (230 V AC available) 120 V AC (230 V AC available) 110 V AC (240V available) 115 V AC (220V available) 110 V AC (220V available) 90-264 VAC
Wattage 150 Watt, 21 V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V 5 Watt
Output 1750 Lumens at fiber optic plane 200 Watt (Max) 2000+ Lumens (12.7mm aperture) 150 Watt 80 Watt 500 Lumens
Fuse Type 3 Amp, 3A slow blow 2, 5 Amp slow blow 0.5A-1.2A 3Amp 2Amp N/A
Color Temperature 3200K 3200K 5000K 3250K 5000K-8300K 6500K
Input Fiber Diameter 15mm or 25mm (optional) 15mm or 25mm (optional) 15mm or 25mm (optional) 15.8mm (0.625″) (other sizes available) 15.8mm (0.625″) N/A
Light Guide Length 584mm (23″) self-supporting 584mm (23″) self-supporting 584mm (23″) self-supporting 609mm (24″) obedient arm 609mm (24″) obedient arm 482.60 mm (19″)
Active Fiber Bundle 0.20″ (5mm) 0.31″ (8mm) 0.20″ (5mm) 0.265” (4.76mm) 0.265” (4.76mm) N/A
Dimensions 6.8” (W) X 5” (H) X 8.3” (D) 8” (W) X 4.75” (H) X 7” (D) 7.0” (W) X 4.9” (H) X 8.8” (D) 7.0” (W) X 6.5” (H) X 7.5” (D) 4.75″ (W) X 6″ (H) X 9″ (D) 4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height)
Weight 7.75lbs 13.5lbs 6lbs 7.5lbs 7 lbs 5.25lbs
ANNULAR ARM  FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model FL152 FT192 FL-5000-RL FQ152 FQ-5000-DG
Light Type  Halogen Halogen LED Halogen LED
Input 115 V AC (230 V AC available) 120 V AC (230 V AC available) 110 V AC (240V available) 115 V AC (220V available) 110 V AC (220V available)
Wattage 150 Watt, 21 V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V
Output 1750 Lumens at fiber optic plane 200 Watt (Max) 2000+ Lumens (12.7mm aperture) 150 Watt 80 Watt
Fuse Type 3 Amp, 3A slow blow 2, 5 Amp slow blow 0.5A-1.2A 3Amp 2Amp
Color Temperature 3200K 3200K 5000K 3250K 5000K-8300K
Input Fiber Diameter 15mm or 25mm (optional) 15mm or 25mm (optional) 15mm or 25mm (optional) 15.8mm (0.625″) (other sizes available) 15.8mm (0.625″)
Light Guide Length 914.4mm (36″) 914.4mm (36″) 914.4mm (36″) 914.4mm (36″) 914.4mm (36″)
Active Fiber Bundle 9.5mm (0.373”) 10mm (0.394″) 9.5mm (0.373”) 9.45mm (0.371″) 9.45mm (0.371″)
Diameter Ring Aperture 60.2mm (2.37″) 60mm (2.36″) 60.2mm (2.37″) 60mm (2.36″) 60mm (2.36″)
Dimensions 6.8” (W) X 5” (H) X 8.3” (D) 8” (W) X 4.75” (H) X 7” (D) 7.0” (W) X 4.9” (H) X 8.8” (D) 7.0” (W) X 6.5” (H) X 7.5” (D) 4.75″ (W) X 6″ (H) X 9″ (D)
Weight 7.75lbs 13.5lbs 6lbs 7.5lbs 7 lbs
SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model FL153 FT193 FL-5000-SG
Light Type  Halogen Halogen LED
Input 115 V AC (230 V AC available) 120 V AC (230 V AC available) 110 V AC (240V available)
Wattage 150 Watt, 21 V 150 Watt, 21V 150 Watt, 21V
Output 1750 Lumens at fiber optic plane 200 Watt (Max) 2000+ Lumens (12.7mm aperture)
Fuse Type 3 Amp, 3A slow blow 2, 5 Amp slow blow 0.5A-1.2A
Color Temperature 3200K 3200K 5000K
Input Fiber Diameter 15mm or 25mm (optional) 15mm or 25mm (optional) 15mm or 25mm (optional)
Light Guide Length 457.2mm (18″) 508mm (24″) 457.2mm (18″)
Active Output Fiber Bundle 6.35mm (0.25″) 6.35mm (0.25″) 6.35mm (0.25″)
Dimensions 6.8” (W) X 5” (H) X 8.3” (D) 8” (W) X 4.75” (H) X 7” (D) 7.0” (W) X 4.9” (H) X 8.8” (D)
Weight 7.75lbs 13.5lbs 6lbs
