Description
EMZ-13TRH: Trinocular Microscope Head + MA522: Eyepieces + F: Focus Block + BD-M-LED: Stand + MA151/35/03: Adapter + HD1000-LITE-M: Camera and Monitor (Complete System)
EMZ-13TRH: Microscope Head
The EMZ-13TRH is a new and improved high eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also use a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X). Optional rubber eye guards (MA906) are also available. The EMZ-13TRH trinocular zoom body is used for photography and video applications and offers an extended zoom ratio of 7:1, the highest in its series. Its modular design enables the user to select a magnification from 3x – 420x. Because it has a large zoom range, the user can expect superb optical performance and maneuverability. The paired objectives are parfocalled and parcentered which guarantee observation of high resolution images throughout a wide magnification range. The EMZ-13TRH series offer working distances from 34mm – 252mm. The EMZ-13TRH employs Greenough optics for improved image flatness and contrast. As a result, images are brighter and more distinct even at the periphery of the field of view. The EMZ-13TRH is suitable for precision-oriented semi-conductor, medical device and routine inspection. In addition to its compact design and versatility, a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any work/lab application.
MA552: Eyepieces
Included is the MA522 Super Widefield Eyepiece, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only).
F: Focus Holder
The F holder is a focusing holder with a rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.
BD-M-LED: Stands
BD-M-LED is a wide surface LED Brightfield/Darkfield stand for applications that require transmitted oblique illumination or angle light. This is a popular stand for protein crystallography, equine or bovine embryo transfer. This specialized stand contains a reflection mirror in the base that is rotatable which allows the LED illumination to hit the sample at oblique angles. This stand is a simple and popular method for rendering unstained and transparent specimens, small aquatic organisms, oocytes, and specimens that have refractive index ranging from 1.4-1.2 which has a negligible difference from their surrounding aqueous medium. This type of specimens are ideal candidates for observation with darkfield illumination techniques. The mirror can also slide forward and back to provide maximum light angle control. There is a locking ring once a desired angle is reached.
MA151/35/03: Video CCD “C” Mount
The MA151/35/03 0.3X lens (21mm reticle mount) video C” mount is used to connect the CCD Camera to the trinocular tube of the EM Series stereo microscope. The smaller the CCD imager the greater the video magnification. Choosing the correct C” mount for your application allows you to control the magnification on the video monitor. Meiji Techno offers the following “C” mounts for the EM Series Microscopes.

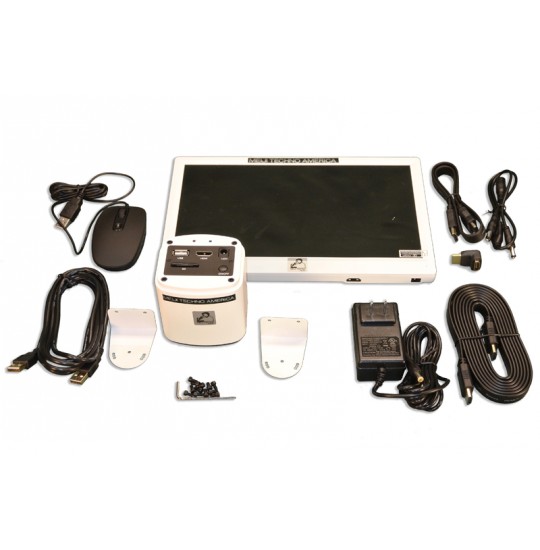

HD1000-LITE-M: Camera and Monitor
The HD1500MET-M is our full featured 6 MP camera with a 1/3” CMOS chip. A 0.3X C” mount adapter (MA151/35/03) is needed to attach to any standard Meiji Techno America Trinocular Microscope. The HD1500MET-M features a full HD (1080×1920) resolution, which provides high fidelity images with a refresh rate of 60fps- frames per second when connected via HDMI, so there is absolutely no lag in the live video feed when moving your specimen or part. Included with the 11.8” High-Definition display is a mounting kit that allows the display to be mounted directly in front of the HD1500MET-M. The 11.8” High-Definition display is used with the provided USB 2.0 mouse; with this the user can access menus that provide all the features of the camera such as exposure, white balance, color control (red or blue), gamma, brightness, sharpness, saturation, denoise, color temperature. In addition, it allows the user to save images and videos directly on the full SD card due to the onboard operating system. You can flip the image horizontally, vertically, do a split screen where-in one side of the monitor is a live image and the other half is the captured image. You can also digitally increase/decrease the zoom if needed if your stereo system has reached its magnification potential, this will give you the added digital magnification needed. You can also superimpose a crossline reticle directly on your live image, first click gives you a red line second click gives you a green line, and the third click omits the crossline. The live video and still shots can be saved directly on the removable full SD card for subsequent image capture. All this is achieved without the need for a PC. You may also connect directly to any monitor or TV with a HDMI port for a wider view if necessary. All USB 2.0, HDMI, SD card, power supply is all supplied. You can also attach a wireless mouse if you choose to go wireless with a third-party mouse.
NOTE:
• 6MP Still resolution 3264×1836
• 2MP Live video 1920×1080 60 fps (frames per second) via HDMI
• 2MP Live video 1920×1080 30 fps (frames per second) via USB2.0
EMZ-13TRH Body Info:
Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 7:1
Zoom Range: 1x – 7x
Zoom Knobs Markings: 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4, 5, 6, 7
Zoom Control: Dual, graduated, bilateral
Magnification: 10x – 70x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 23mm – 3.2mm
Working distance: 90mm
Eyetube Inclination: 45°
Eyepieces: High Eyepoint 10x, (MA522- Paired) (required)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 3x – 420x (With auxiliary lenses and eyepieces)
Extended Working Distances: 32mm – 230mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Includes:
• EMZ-13TRH Trino Zoom Stereo Body
• Meiji Techno Dust Cover (MA703)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty Card
Package Information:
• 6 lbs
• 14 x 8 x 9 inches
MA522: Eyepieces
MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)
MA522 Super Widefield High Eyepoint 10X (for EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount.
This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
F: Focus Block
F Coarse Focus Block/Holder is a focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.
BD-M-LED: Pole Stand
BD-M-LED is a wide surface LED Brightfield/Darkfield stand for applications that require transmitted oblique illumination or angle light is required. This is a popular stand for protein crystallography, equine or bovine embryo transfer. This specialized stand contains a reflection mirror in the base that is rotatable which allows the LED illumination to hit the sample at oblique angles. This stand is a simple and popular method for rendering unstained and transparent specimens clearly visible, small aquatic organisms, oocytes, have refractive index ranging from 1.4-1.2 which has a negligible difference from their surrounding aqueous medium. This type of specimens are ideal candidates for observation with darkfield illumination techniques. The mirror can also slide forward and back to provide maximum light angle control. There is a locking ring once a desired angle is reached.
The EM Series stereoscopes can be mounted on the BD-M-LED stand for transmitted Brightfield / Darkfield LED illumination. This features a rotatable sliding mirror which also slides back and forth to direct the light at an appropriate angle. Ideal for many biological applications but works even for gemology, due to the ability to adjust the angle of illumination with the rotatable sliding mirror. With 20 mm post (Requires F focus block or any 20mm focus block.) Base Dimensions: 330mm (13″) wide by 280mm (11″) deep by 85mm (3.37″) high.
•Brightfield/Darkfield pole type stand
•94.5mm clear glass stage plate
•Automatic voltage sensing powersupply (110v-220v)
• Wide surface stand can accomodate 3-4 petri dishes
• Front slope for comfortable hand placement
• LED rheostat intensity control
• Rotatable and sliding mirror
• Locking ring for mirror angle placement
• Accepts 20mm focus blocks such as the F, FX, FC models
• Can accomodate EMZ-Zoom, EMT-Turret and EMF-Fixed stereo microscope bodies
BD-M-LED Info:
Stand: Base Dimensions: 330mm (13″) wide by 280mm (11″) deep by 85mm (3.37″) high
MA569: 94.5mm diameter glass stage plate
MA593: Two stainless steel stage clips Illumination Port: LED transmitted light darkfield illumination
MA151/35/03: C” Mount Adapter
C-mount adapter with 0.3X lens, accepts 21mm reticle (Slips over top of existing photo tube – For 1/3″ CCD)
HD1000-LITE-M: Camera and Monitor
The HD1000-LITE-M features:
- HDMI scientific imaging solution with a 1/2.5” inch sensor size by Micron MT9p001
- 2.2 x 2.2 Pixel size (um) color camera
- 5.0 MP effective pixel and a max resolution of 2592 x 1944
- PC Compatible
- Scan mode is progressive with a rolling shutter
- Interface 1 is HDMI
- Interface 2 is USB 2.0
- Frame rate is 15 fps (frame per second) /1080P HDMI
- 15fps (frame per second) /1080p by USB 2.0, frame rate streaming direct to monitor
- Color Depth is 24 Bit
- A/D 8bit
- Exposure control is Manual /Auto
- Integration time is 1ms-10s
- White balance is Manual/Auto
- Responsivity 1.4V/ lux-sec
- Dynamic range is 70.1dB
- SNR is 38.1dB
- Optical Port : Standard Female C” mount thread
- Capture : H4SD card(4G) Included
- Built in Software: Cloud 1.0 version
- Compatible OS :XP, Win 7/8, 32/64bit, MAC 0SX
- 11.6” Monitor
Includes:
• HD1000-LITE – Camera HDMI 1/3 “CMOS CHIP
• HDMI to HDMI Cable 3-foot-long cable
• USB 2.0 to USB2.0 cable
• Full SD CARD-H4SD card(4G)
• Power Supply 12V AC./DC adapter
• USB 2.0 Mouse
• Measurement Software with Annotation Feature Installation Disc
• 11.6″ Monitor
Package Information:
• 5lbs
• 12 x 10 x 4 inches
EM STEREO SERIES BROCHURE
(CLICK TO DOWNLOAD FULL BROCHURE)
OPTIONAL CAMERA ACCESSORIES
| CAMERAS (OPTIONAL) | |||||
| Model | HD1000-LITE | HD1500T | HD1500MET | HD1500MET-AF | HD4500K |
 |
 |
 |
 |
 |
|
| Type | HDMI/USB 2.0 | HDMI/USB 2.0Basic Measurement Features | HDMI/USB 2.0Metrics Measurement Features | HDMI/USB 2.0Auto-focusing/Z stack & stitching | HDMI/USB/SD/LAN/WiFi |
| Version | Color | Color | Color | Color | Color |
| Mega Pixels | 5MP | 2-6MP | 2-6MP | 2-6MP | 8MP |
| Resolution | 2592 x 1944 | 3264 x 1840 Static1920 x 1080 Dynamic | 3264 x 1840 Static1920 x 1080 Dynamic | 3264 x 1840 Static1920 x 1080 Dynamic | 3840 x 2160 |
| Frame Rate (FPS) | 15fps by HDMI15fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 60fps by HDMI |
| Sensor | 1/2.5″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS | 1/1.8’’ CMOS |
| C-mount | 0.3X | 0.3X | 0.3X | 0.3X | 0.3X |
| CAMERAS WITH MONITORS (OPTIONAL) | |||||
| Model | HD1000-LITE-M | HD1500TM | HD1500MET-M | HD1500MET-M-AF | HD4500K-M |
 |
 |
 |
 |
 |
|
| Type | HDMI/USB 2.0 | HDMI/USB 2.0Basic Measurement Features | HDMI/USB 2.0Metrics Measurement Features | HDMI/USB 2.0Auto-focusing/Z stack & stitching | HDMI/USB/SD/LAN/WiFi |
| Monitor Size | 11.8″ | 11.8″ | 11.8″ | 11.8″ | 13.3” |
| Version | Color | Color | Color | Color | Color |
| Mega Pixels | 5MP | 2-6MP | 2-6MP | 2-6MP | 8MP |
| Resolution | 2592 x 1944 | 3264 x 1840 Static1920 x 1080 Dynamic | 3264 x 1840 Static1920 x 1080 Dynamic | 3264 x 1840 Static1920 x 1080 Dynamic | 3840 x 2160 |
| Frame Rate (FPS) | 15fps by HDMI15fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 30fps by HDMI30fps by USB |
| Sensor | 1/2.5″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS | 1/1.8” CMOS |
| C-mount | 0.3X | 0.3X | 0.3X | 0.3X | 0.3X |
OPTIONAL ILLUMINATOR ACCESSORIES
| RINGLIGHTS (OPTIONAL) | ||||||
| Model | MA962 | MA964 | MA961/S/ESD (SLIMLINE) | MA961/40 (40 LEDs) | MA961/80/ESD (80 LEDs) | MA305/100 |
 |
 |
 |
 |
 |
 |
|
| Light Type | LED | LED | LED | LED | LED | Fluorescent |
| White Light Options | Daylight | Daylight | Daylight (MA961D/S/ESD), Cool White (MA961C/S/ESD), Warm White (MA961W/S/ESD), |
Daylight (MA961D/40), Cool White (MA961C/40), Warm White (MA961W/40) |
Daylight (MA961D/80/ESD), Cool White (MA961C/80/ESD), Warm White (MA961W/80/ESD) |
Daylight, Warm White |
| Number of Bulbs | 56 | 60 | 40 | 40 | 80 | 1 |
| Wattage | 3.5W | 10W | 4W | N/A | 5W | 8W |
| Input | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V |
| Output | 12V DC, 0.5A | 10W | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 8W |
| Inner Diameter | 57mm (2.24″) | 54.6mm (2.15″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 48mm (1.89″) |
| Outer Diameter | 95.5mm (3.76″) | 90mm (3.54″) | 101mm (4.01″) | 97mm (3.81″) | 105mm (4.11″) | 90mm (3.54″) |
| Height | 31.75mm (1.25″) | 22.8mm (0.9″) | 28mm (1.09″) | 26mm (1.02″) | 26mm (1.02″) | 15.8mm (0.662″) |
| Length | 133.8mm (5.27″) | 90mm (3.54″) | 135mm (5.30″) | 151mm (5.94″) | 125mm (4.92″) | 109mm (4.29″) |
| Needs Adapter Mount for EMZ Series (MA302) | Yes | No | Yes | No | No | Yes |
| Needs Adapter Mount for RZ Series (MA308) | Yes | No | Yes | No | No | Yes |
| DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | ||||||
| Model | FL151 | FT191 | FL-5000-DG | FQ151 | FQ-5000-DG | TPI6IL |
 |
 |
 |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED | Halogen | LED | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) | 90-264 VAC |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 5 Watt |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt | 500 Lumens |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp | N/A |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K | 6500K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) | N/A |
| Light Guide Length | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 609mm (24″) obedient arm | 609mm (24″) obedient arm | 482.60 mm (19″) |
| Active Fiber Bundle | 0.20″ (5mm) | 0.31″ (8mm) | 0.20″ (5mm) | 0.265” (4.76mm) | 0.265” (4.76mm) | N/A |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) | 4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs | 5.25lbs |
| ANNULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||||
| Model | FL152 | FT192 | FL-5000-RL | FQ152 | FQ-5000-RL |
 |
 |
 |
 |
|
|
| Light Type | Halogen | Halogen | LED | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) |
| Light Guide Length | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) |
| Active Fiber Bundle | 9.5mm (0.373”) | 10mm (0.394″) | 9.5mm (0.373”) | 9.45mm (0.371″) | 9.45mm (0.371″) |
| Diameter Ring Aperture | 60.2mm (2.37″) | 60mm (2.36″) | 60.2mm (2.37″) | 60mm (2.36″) | 60mm (2.36″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs |
| SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||
| Model | FL153 | FT193 | FL-5000-SG |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A |
| Color Temperature | 3200K | 3200K | 5000K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) |
| Light Guide Length | 457.2mm (18″) | 508mm (24″) | 457.2mm (18″) |
| Active Output Fiber Bundle | 6.35mm (0.25″) | 6.35mm (0.25″) | 6.35mm (0.25″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) |
