Description
EMZ-13TRH: Trinocular Microscope Head + MA522: Eyepieces + PKL-1: Stand
EMZ-13TRH: Microscope Head
The EMZ-13TRH is a new and improved high eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also use a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X). Optional rubber eye guards (MA906) are also available. The EMZ-13TRH trinocular zoom body is used for photography and video applications and offers an extended zoom ratio of 7:1, the highest in its series. Its modular design enables the user to select a magnification from 3x – 420x. Because it has a large zoom range, the user can expect superb optical performance and maneuverability. The paired objectives are parfocalled and parcentered which guarantee observation of high resolution images throughout a wide magnification range. The EMZ-13TRH series offer working distances from 34mm – 252mm. The EMZ-13TRH employs Greenough optics for improved image flatness and contrast. As a result, images are brighter and more distinct even at the periphery of the field of view. The EMZ-13TRH is suitable for precision-oriented semi-conductor, medical device and routine inspection. In addition to its compact design and versatility, a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any work/lab application.
MA522: Eyepieces
MA522 Super Widefield Eyepiece is included, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only)
PKL-1: Pole Stand
The stand is a PKL-1 Stand is Meiji Techno America’s most popular LED stand with built in incident LED illumination which may be operated independently or simultaneously. Since LED provides no direct heat, there won’t be any external stress on the specimen placed on the stage. Equipped with an integral F focusing holder with an 84.5mm round diameter opening, mounted on a low profile wide cast aluminum alloy base stable stand. Supplied with one 94.5mm diameter reversible black and white stage plate (MA568) and two stainless steel stage clips (MA593).
EMZ-13TRH Body Info:
Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 7:1
Zoom Range: 1x – 7x
Zoom Knobs Markings: 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4, 5, 6, 7
Zoom Control: Dual, graduated, bilateral
Magnification: 10x – 70x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 23mm – 3.2mm
Working distance: 90mm
Eyetube Inclination: 45°
Eyepieces: High Eyepoint 10x, (MA522- Paired) (required)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 3x – 420x (With auxiliary lenses and eyepieces)
Extended Working Distances: 32mm – 230mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Includes:
• EMZ-13TRH Trino Zoom Stereo Body
• Meiji Techno Dust Cover (MA703)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty Card
Package Information:
• 6 lbs
• 14 x 8 x 9 inches
MA522: Eyepieces
MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)
MA522 Super Widefield High Eyepoint 10X (for EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount.
This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)

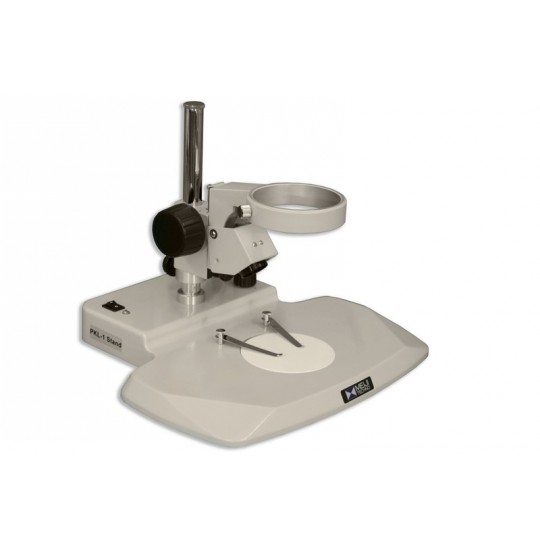

PKL-1: Stand
The PKL-1 Stand is Meiji Techno America’s most popular LED stand with built in incident LED illumination which may be operated independently or simultaneously. Since LED provides no direct heat, there won’t be any external stress on the specimen placed on the stage. Equipped with an integral F focusing holder with an 84.5mm round diameter opening, mounted on a low profile wide cast aluminum alloy base stable stand. Supplied with one 94.5mm diameter reversible black and white stage plate (MA568) and two stainless steel stage clips (MA593). The PKL-1 Stand is designed for use mostly with zoom (EMZ Series) but can also be used for our turret (EMT Series), fixed (EMF Series) stereo bodies wherein only incident illumination is needed. The PKL-1 stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically if needed for special applications. A 5” extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens (MA551). Chemical Resistant Finish and is auto-voltage sensing power supply (100V-240V).
The PKL-1 Pole Stand features include:
• PKL-1 Stand is Meiji Techno’s Low Profile Ergonomic LED stand with built in incident LED illumination which may be operated independently or simultaneously
• Equipped with a F focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable
• PKL-1 Stand is designed for use mostly with zoom (EMZ Series), but can also be used for our turret (EMT Series), fixed (EMF Series) stereo bodies
• Auto-Voltage Sensing Power supply (100V to 240V)
• ESD Safe, Chemical Resistant Finish
• Cast Aluminum Alloy Construction
• Compact Footprint Design: Length: 330mm by Width: 300mm by Height: 255mm
• Stable rubber feet and locking pin for head stability
OPTIONAL ILLUMINATOR ACCESSORIES
| RINGLIGHTS (OPTIONAL) | ||||||
| Model | MA962 | MA964 | MA961D/S/ESD (SLIMLINE) | MA961D/40 (40 LEDs) | MA961D/80/ESD (80 LEDs) | MA305/100 |
 |
 |
 |
 |
 |
 |
|
| Light Type | LED | LED | LED | LED | LED | Fluorescent |
| White Light Options | Daylight | Daylight | Daylight, Cool White, Warm White |
Daylight, Cool White, Warm White |
Daylight, Cool White, Warm White, |
Daylight, Warm White |
| Number of Bulbs | 56 | 60 | 40 | 40 | 80 | 1 |
| Wattage | 3.5W | 10W | 4W | N/A | 5W | 8W |
| Input | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V |
| Output | 12V DC, 0.5A | 10W | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 8W |
| Inner Diameter | 57mm (2.24″) | 54.6mm (2.15″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 48mm (1.89″) |
| Outer Diameter | 95.5mm (3.76″) | 90mm (3.54″) | 101mm (4.01″) | 97mm (3.81″) | 105mm (4.11″) | 90mm (3.54″) |
| Height | 31.75mm (1.25″) | 22.8mm (0.9″) | 28mm (1.09″) | 26mm (1.02″) | 26mm (1.02″) | 15.8mm (0.662″) |
| Length | 133.8mm (5.27″) | 90mm (3.54″) | 135mm (5.30″) | 151mm (5.94″) | 125mm (4.92″) | 109mm (4.29″) |
| Needs Adapter Mount for EMZ Series (MA302) | Yes | No | Yes | No | No | Yes |
| Needs Adapter Mount for RZ Series (MA308) | Yes | No | Yes | No | No | Yes |
| DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | ||||||
| Model | FL151 | FT191 | FL-5000-DG | FQ151 | FQ-5000-DG | TPI6IL |
 |
 |
 |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED | Halogen | LED | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) | 90-264 VAC |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 5 Watt |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt | 500 Lumens |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp | N/A |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K | 6500K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) | N/A |
| Light Guide Length | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 609mm (24″) obedient arm | 609mm (24″) obedient arm | 482.60 mm (19″) |
| Active Fiber Bundle | 0.20″ (5mm) | 0.31″ (8mm) | 0.20″ (5mm) | 0.265” (4.76mm) | 0.265” (4.76mm) | N/A |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) | 4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs | 5.25lbs |
| ANNULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||||
| Model | FL152 | FT192 | FL-5000-RL | FQ152 | FQ-5000-DG |
 |
 |
 |
 |
|
|
| Light Type | Halogen | Halogen | LED | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) |
| Light Guide Length | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) |
| Active Fiber Bundle | 9.5mm (0.373”) | 10mm (0.394″) | 9.5mm (0.373”) | 9.45mm (0.371″) | 9.45mm (0.371″) |
| Diameter Ring Aperture | 60.2mm (2.37″) | 60mm (2.36″) | 60.2mm (2.37″) | 60mm (2.36″) | 60mm (2.36″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs |
| SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||
| Model | FL153 | FT193 | FL-5000-SG |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A |
| Color Temperature | 3200K | 3200K | 5000K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) |
| Light Guide Length | 457.2mm (18″) | 508mm (24″) | 457.2mm (18″) |
| Active Output Fiber Bundle | 6.35mm (0.25″) | 6.35mm (0.25″) | 6.35mm (0.25″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) |
| Weight | 7.75lbs | 13.5lbs | 6lbs |
