Description
EMZ-5H: Binocular Microscope Head + MA522: Eyepieces + F: Focus Block + SBU: Stand
EMZ-5H: Microscope Head
The EMZ-5H is a New and Improved High Eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also uses a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X) Optional rubber eye guards (MA906) are also available. The EMZ-5H body delivers sharp, high-contrast images and an excellent zoom range of 6.5:1 that provides exceptionally high-resolution images all throughout the zoom range. This EMZ-5H model has a ½” (12.7mm) more field of view than the standard EMZ-5 model ideal for eyeglass users but also compatible for all. The EMZ-5H employs Greenough optics, for improved image flatness and contrast. As a result, images are brighter and more distinct even at the periphery of the field of view. With the large zoom range, the EMZ-5H offers high resolution observation in precision-oriented semi-conductor, medical device and routine inspection. In addition to its compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Suitable for eyeglass users.
MA522: Eyepieces
MA522 Super Widefield Eyepiece is included, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only)
F: Focus Block
Focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.
SBU: Stand
The SBU Stand is Meiji Techno America’s most popular Large stable Universal-type Ergonomic 580mm x 500mm x 38mm flat Laminate Board stand which requires external illumination and focus holder. This SBU Ergonomic stand can accommodate an extended work surface for use with large circuit boards or animal surgery which requires a wide surface area. Equipped with a pillar, crossarm and mounting post mounted directly over a large flat laminate work surface. Provides flexible horizontal and vertical movement for large specimens. 20mm diameter short drop-down mounting post accepts optional F, FX or FC holders with a 20 mm hole. The SBU stand is designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies. The SBU Stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically to accommodate different sample heights or special applications.
EMZ-5H: Microscope Head
The EMZ-5H High Eyepoint Binocular Stereo Zoom Body is a precision-engineered microscope component designed to deliver exceptionally clear, high-contrast imaging with a versatile 6.5:1 zoom range (0.7×–4.5×) and a comfortable 93 mm working distance, ideal for detailed inspection in semiconductor, medical device, and routine lab applications. Featuring Greenough optics for improved image flatness and brightness, this high eyepoint model offers extended eye relief (~20.9 mm) that provides extra clearance for eyeglass wearers while maintaining sharp resolution throughout the entire zoom range. Its sturdy cast aluminum construction with a 360° rotatable binocular head, interpupillary and dioptric adjustments ensures ergonomic use and adaptability, while the requirement for paired MA522 10× high eyepoint eyepieces allows customization for specific magnification needs.
Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction
Trinocular Port: 23.2mm I.D, 25.2mm O.D
Zoom Ratio: 6.5:1
Zoom Range: 0.7x – 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x – 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm – 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: High Eyepoint 10x, (MA522- Paired) (required – not included)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x – 270x (With optional auxiliary lenses and eyepieces)
Extended Working Distances: 34mm – 251mm (With optional auxiliary lenses and eyepieces)
Mounting: Fits 84.5mm Diameter Focus Holders
Auxiliary Lenses: MA517 – 0.5x W.D. 150mm (5.9″), MA526 – 0.75x W.D. 97mm (3.8″), MA507 – 1.5x W.D. 49mm (1.9″), and MA511 – 2x W.D. 34mm (1.3″) (optional)
MA522: Eyepieces
MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)
MA522 Super Widefield High Eyepoint 10X (for EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount.
This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
F: Block
Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies

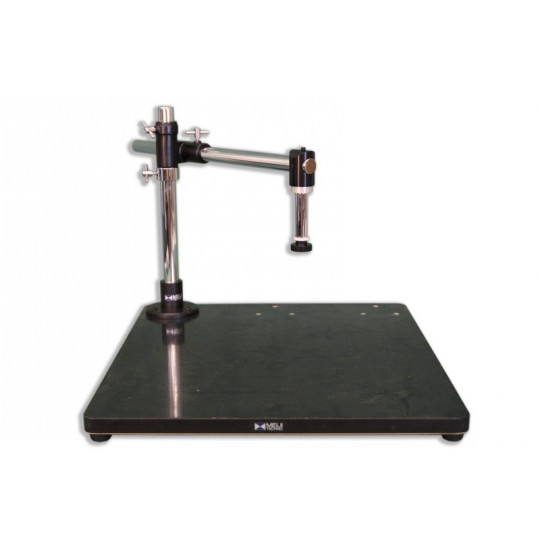

SBU: Wide Stand
The SBU Stand is Meiji Techno America’s most popular Large stable Universal-type Ergonomic 580mm x 500mm x 38mm flat Laminate Board stand which requires external illumination and focus holder. This SBU Ergonomic stand can accommodate an extended work surface for use with large circuit boards or animal surgery which requires a wide surface area. Equipped with a pillar, crossarm and mounting post mounted directly over a large flat laminate work surface. Provides flexible horizontal and vertical movement for large specimens. 20mm diameter short drop down mounting post accepts optional F, FX or FC holders with a 20 mm hole. The SBU stand is designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies. The SBU Stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically to accommodate different sample heights or special applications.
The SBU Wide-Surface Stand features include:
• KBL Stand is a Meiji Techno America’s most popular Ergonomic 380mm x 330mm x 20mm flat Laminate Board stand which requires external illumination
• SBU Stand is a Meiji Techno America’s most popular Large stable Universal-type Ergonomic 580mm x 500mm x 38mm flat Laminate Board stand (Included)
• Requires external illumination and focus holder
• Horizontal pole: Length: 480mm/Diameter: 25mm (Included)
• Vertical pole: Length: 365mm/ Diameter: 29mm (Included)
• Safety Collar for vertical stability
• SBU Ergonomic stand can accommodate an extended work surface for use with large circuit boards or animal surgery which requires a wide surface area
• Provides flexible horizontal and vertical movement for large specimen SBU Stand is designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies
• 20mm diameter short drop down mounting post accepts optional F, FX or FC holders with a 20 mm hole
• SBU Stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically to accommodate different sample heights or special applications
• Stable rubber feet and locking pin for head stability
OPTIONAL ILLUMINATOR ACCESSORIES
| RINGLIGHTS (OPTIONAL) | ||||||
| Model | MA962 | MA964 | MA961D/S/ESD (SLIMLINE) | MA961D/40 (40 LEDs) | MA961D/80/ESD (80 LEDs) | MA305/100 |
 |
 |
 |
 |
 |
 |
|
| Light Type | LED | LED | LED | LED | LED | Fluorescent |
| White Light Options | Daylight | Daylight | Daylight, Cool White, Warm White |
Daylight, Cool White, Warm White |
Daylight, Cool White, Warm White, |
Daylight, Warm White |
| Number of Bulbs | 56 | 60 | 40 | 40 | 80 | 1 |
| Wattage | 3.5W | 10W | 4W | N/A | 5W | 8W |
| Input | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V |
| Output | 12V DC, 0.5A | 10W | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 8W |
| Inner Diameter | 57mm (2.24″) | 54.6mm (2.15″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 48mm (1.89″) |
| Outer Diameter | 95.5mm (3.76″) | 90mm (3.54″) | 101mm (4.01″) | 97mm (3.81″) | 105mm (4.11″) | 90mm (3.54″) |
| Height | 31.75mm (1.25″) | 22.8mm (0.9″) | 28mm (1.09″) | 26mm (1.02″) | 26mm (1.02″) | 15.8mm (0.662″) |
| Length | 133.8mm (5.27″) | 90mm (3.54″) | 135mm (5.30″) | 151mm (5.94″) | 125mm (4.92″) | 109mm (4.29″) |
| Needs Adapter Mount for EMZ Series (MA302) | Yes | No | Yes | No | No | Yes |
| Needs Adapter Mount for RZ Series (MA308) | Yes | No | Yes | No | No | Yes |
| DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | ||||||
| Model | FL151 | FT191 | FL-5000-DG | FQ151 | FQ-5000-DG | TPI6IL |
 |
 |
 |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED | Halogen | LED | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) | 90-264 VAC |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 5 Watt |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt | 500 Lumens |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp | N/A |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K | 6500K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) | N/A |
| Light Guide Length | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 609mm (24″) obedient arm | 609mm (24″) obedient arm | 482.60 mm (19″) |
| Active Fiber Bundle | 0.20″ (5mm) | 0.31″ (8mm) | 0.20″ (5mm) | 0.265” (4.76mm) | 0.265” (4.76mm) | N/A |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) | 4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs | 5.25lbs |
| ANNULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||||
| Model | FL152 | FT192 | FL-5000-RL | FQ152 | FQ-5000-DG |
 |
 |
 |
 |
|
|
| Light Type | Halogen | Halogen | LED | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) |
| Light Guide Length | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) |
| Active Fiber Bundle | 9.5mm (0.373”) | 10mm (0.394″) | 9.5mm (0.373”) | 9.45mm (0.371″) | 9.45mm (0.371″) |
| Diameter Ring Aperture | 60.2mm (2.37″) | 60mm (2.36″) | 60.2mm (2.37″) | 60mm (2.36″) | 60mm (2.36″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs |
| SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||
| Model | FL153 | FT193 | FL-5000-SG |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A |
| Color Temperature | 3200K | 3200K | 5000K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) |
| Light Guide Length | 457.2mm (18″) | 508mm (24″) | 457.2mm (18″) |
| Active Output Fiber Bundle | 6.35mm (0.25″) | 6.35mm (0.25″) | 6.35mm (0.25″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) |
| Weight | 7.75lbs | 13.5lbs | 6lbs |
