Key Components

  • EMZ-5TR Trinocular Head – The main optical unit that provides zoom magnification (0.7×–4.5×) and produces a clear 3D image using Greenough stereo optics and allows simultaneous viewing through eyepieces and a camera/monitor.
  • MA502 Eyepieces – Pair of 10× Super Widefield eyepieces that deliver a broad, clear view.
  • P Stand – Stable, ergonomic support for routine bench work
  • MA961D/40 Illumination – Integrated LED light source that provides bright, natural daylight-balanced lighting (incident/top) to clearly illuminate specimens.
  • MA151/35/03 Adapter – Adapter for connecting the head to the stand or camera system.
  • HD1500T Camera– Digital camera for live monitor viewing and image capture

Optical Performance

  • Zoom Range: 7× to 45× total magnification
  • Working Distance: 93 mm (3.66 in) — plenty of space between the objective and the subject for manipulation or tools.
  • Stereo (3D) Viewing: True depth perception for precise inspection
  • Bright, High-Contrast Imaging: Clear detail across the entire zoom range

What It Does

The Meiji Techno EMZ-5TR Microscope Configuration is a high-performance stereo zoom microscope system built for detailed inspection, electronics repair, laboratory use, and industrial quality assurance. With a 7X–45X magnification range and true 3D imaging, it delivers sharp, accurate views of small parts while providing enough working distance for precision tasks like soldering, circuit board inspection, and fine assembly work. The configuration also features ESD-safe LED lighting for bright, even illumination and an HD camera system that enables live video display and image capture for documentation, training, and production applications.

NOTE:
• 6MP Still resolution 3264×1836
• 2MP Live video 1920×1080 60 fps (frames per second) via HDMI
• 2MP Live video 1920×1080 30 fps (frames per second) via USB2.0

NOTE: The versatility of our Stereo Microscope has the ability to pick from out wide range of components to adapt to your unique application:
• Stereo Microscope Body (Zoom, Turret or Fixed)
• Eyepieces (Requires 2 of identical magnification)
• Stand (Pole stands, rigid arm stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands)
• Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
• Auxiliary Lens (Optional)

CLICK OR SCAN QR CODE HERE!



Brochure      Video    Manual

Made In Japan

Locate a DealerGet a Quote

ceisorohs

SKU: EMZ-5TR + P + MA961D/40 (Daylight) + HD1500T Category:

Description

EMZ-5TR: Trinocular Microscope Head + MA502: Eyepieces + P: Stand + MA961D/40: Illuminator + MA151/35/03: Adapter + HD1500T: Camera and Monitor (Complete System)

EMZ-5TR: Microscope Head
The EMZ-5TR trinocular zoom body is used for photography and video applications. When the beamsplitter is engaged, 100% of the light from the left optical path is directed to the phototube. The image can still be viewed through the right eye tube. The EMZ-5TR employs Greenough optics for improved image flatness and contrast. The EMZ-5TR offers high resolution erect unreversed stereoscopic image. In addition to its compact design and versatility, a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Photomicrography made easy with over 300 available digital, analog and SLR camera adapters.

MA502: Eyepieces
Included is the MA502 Super Widefield Eyepiece 10X (pair) with 25mm reticle mount Field No. 23.0, Eye Relief 16.0, Focal Length 25.0.

P: Pole Stand
The P stand in Meiji Techno America’s basic pole stand with “F” focusing holder mounted on a plain base. It accepts our EMZ, EMT and EMF stereo microscope bodies. It is supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin, two stainless steel stage clips and a 20mm diameter vertical pole. The P stand’s compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built-in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.

MA961D/40: LED Ring Daylight
MA961D/40 delivers powerful, microscope quality daylight from the precision aligned LED array. Our CAD designed ring light system contains 40 top quality high-brightness white LEDs housed in a machined aluminum and molded plastic enclosure. Our advanced LED controller utilizes a proprietary constant current design to provide maximum light output with long life and no color shift when dimming. This key feature is integrated into the compact ring light housing.

MA151/35/03: Video CCD “C” Mount
The MA151/35/03 0.3X lens (21mm reticle mount) video C” mount is used to connect the CCD Camera to the trinocular tube of the EM Series stereo microscope. The smaller the CCD imager the greater the video magnification. Choosing the correct C” mount for your application allows you to control the magnification on the video monitor. Meiji Techno offers the following “C” mounts for the EM Series Microscopes.

HD1500T: Camera
The HD1500T can be mounted directly to any HDMI monitor or PC via USB 2.0 or HDMI connectivity and can be used with the provided USB 2.0 mouse, with this the user can access menus that provide all the features of the camera such as exposure, white balance, color control (red or blue), gamma, brightness, sharpness, saturation, denoise, color temperature plus allows the user to save images and videos directly on the full SD card due to the onboard operating system. You can flip the image horizontally, vertically, do a split screen where-in one side of the monitor is a live image and the other half is the captured image. You can also digitally increase/decrease the zoom if needed if your stereo system has reached its magnification potential, this will give you the added digital magnification needed. You can also superimpose a cross-line reticle directly on your live image, first click gives you a red line second click gives you a green line, and the third click omits the crossline. The live video and still shots can be saved directly on the removable full SD card for subsequent image capture. All this is achieved without the need for a PC.

NOTE:
• 6MP Still resolution 3264×1836
• 2MP Live video 1920×1080 60 fps (frames per second) via HDMI
• 2MP Live video 1920×1080 30 fps (frames per second) via USB2.0

EMZ-5TR: Microscope Head

emz-5tr

Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction
Trinocular Port: 23.2mm I.D, 25.2mm O.D
Zoom Ratio: 6.5:1
Zoom Range: 0.7x – 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x – 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm – 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x – 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 34mm – 251mm (With auxiliary lenses and eyepieces)
Mounting: Fits 84.5mm Diameter Focus Holders
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)

MA502: Eyepieces

ma502

Included is the MA502 Super Widefield Eyepiece 10X (pair) with 25mm reticle mount Field No. 23.0, Eye Relief 16.0, Focal Length 25.0

P: Pole Stand

p stand

Dimensions: 150mm (5.9″) wide by 230mm (9.05″) deep
Pillar Height: 9” height – 20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: F Focus Holder Block included with 84.2 mm diameter opening which accepts 84 mm stereo body.  Rack and pinion mount allows smooth precise focusing over 55mm of travel.  Coarse focus mechanism incorporates a slip clutch and tension adjustment (F holder)
Illumination Port: No illumination, requires an external illuminator for lighting

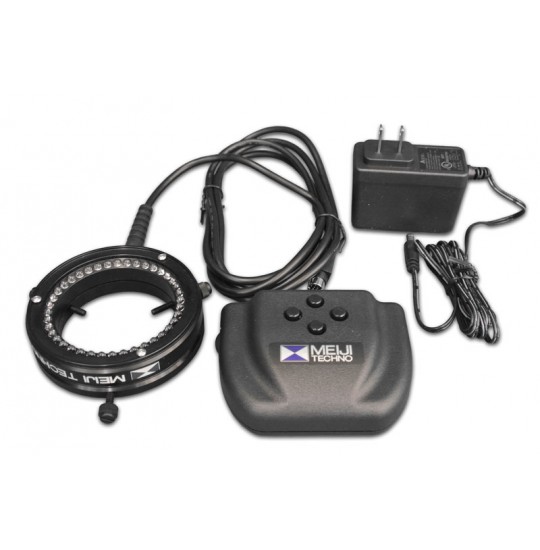

MA961D/40: Illuminator

MA961D/40 - Daylight Quadrant Control Ring Light

The MA961D/40 is the workhorse of industrial microscopy. Featuring 40 powerful LEDs precision aligned in a machined housing for ideal shadow free illumination.

Key Specifications:
• 40 LEDs
• 66mm Inside Diameter
• 4 Separately Controllable Banks – 6000K
• 90 Degree Segment Control
• Auto Voltage Sensing Power Supply
• Standard Working Distance

MA151/35/03: C” Mount Adapter

ma151/35/03

C-mount adapter with 0.3X lens, accepts 21mm reticle (Slips over top of existing photo tube – For 1/3″ CCD)

HD1500T: Camera

HD1500T Color HD 6MP CMOS 60FPS/ HDMI/ USB 2.0 Camera/Annotation & Measurement Software

The HD1500T features:

  • HDMI C-mount camera
  • 6MP Still resolution 3264×1836
  • 2MP Live video 1920×1080 60 fps (frames per second) via HDMI
  • 2MP Live video 1920×1080 30 fps (frames per second) via USB2.0
  • Video record: 1080p 30fps (frames per second) on SD card or PC
  • Output: HDMI, USB 2.0, SD Card
  • 1/3″ CMOS chip (use .3x C-mount adapter)
  • Button (1) controls: Exposure, White balance, Gamma, Gain, Sharpness, Saturation, Contrast
  • Button (2) controls: Cross line, Image Compare, Image Freeze
  • OS support: Windows XP and later
  • Software: ISCapture full parameter control

Includes:
• HD1500T Camera
• HDMI Cable
• USB Cable
• 12V AC/DC Power adapter
• SD Card
• Mouse
• Application Software ISCapture
• Packing Box
Package Information:
• 5lbs
• 12 x 10 x 4 inches

Stereo Terminology

EM STEREO SERIES BROCHURE

(CLICK TO DOWNLOAD FULL BROCHURE)

OPTIONAL CAMERA ACCESSORIES

CAMERAS (OPTIONAL)
Model HD1000-LITE HD1500T HD1500MET HD1500MET-AF HD4500K
Type HDMI/USB 2.0 HDMI/USB 2.0Basic Measurement Features HDMI/USB 2.0Metrics Measurement Features HDMI/USB 2.0Auto-focusing/Z stack & stitching HDMI/USB/SD/LAN/WiFi
Version Color Color Color Color Color
Mega Pixels 5MP 2-6MP 2-6MP 2-6MP 8MP
Resolution 2592 x 1944 3264 x 1840 Static1920 x 1080 Dynamic 3264 x 1840 Static1920 x 1080 Dynamic 3264 x 1840 Static1920 x 1080 Dynamic 3840 x 2160
Frame Rate (FPS) 15fps by HDMI15fps by USB 2.0 60fps by HDMI30fps by USB 2.0 60fps by HDMI30fps by USB 2.0 60fps by HDMI30fps by USB 2.0 60fps by HDMI
Sensor 1/2.5″ CMOS 1/2.8″ CMOS 1/2.8″ CMOS 1/2.8″ CMOS 1/1.8’’ CMOS
C-mount 0.3X 0.3X 0.3X 0.3X 0.3X
CAMERAS WITH MONITORS (OPTIONAL)
Model HD1000-LITE-M HD1500TM HD1500MET-M HD1500MET-M-AF HD4500K-M
Type HDMI/USB 2.0 HDMI/USB 2.0Basic Measurement Features HDMI/USB 2.0Metrics Measurement Features HDMI/USB 2.0Auto-focusing/Z stack & stitching HDMI/USB/SD/LAN/WiFi
Monitor Size 11.8″ 11.8″ 11.8″ 11.8″ 13.3”
Version Color Color Color Color Color
Mega Pixels 5MP 2-6MP 2-6MP 2-6MP 8MP
Resolution 2592 x 1944 3264 x 1840 Static1920 x 1080 Dynamic 3264 x 1840 Static1920 x 1080 Dynamic 3264 x 1840 Static1920 x 1080 Dynamic 3840 x 2160
Frame Rate (FPS) 15fps by HDMI15fps by USB 2.0 60fps by HDMI30fps by USB 2.0 60fps by HDMI30fps by USB 2.0 60fps by HDMI30fps by USB 2.0 30fps by HDMI30fps by USB
Sensor 1/2.5″ CMOS 1/2.8″ CMOS 1/2.8″ CMOS 1/2.8″ CMOS 1/1.8” CMOS
C-mount 0.3X 0.3X 0.3X 0.3X 0.3X

OPTIONAL ILLUMINATOR ACCESSORIES

RINGLIGHTS (OPTIONAL)
Model MA962 MA964 MA961/S/ESD (SLIMLINE) MA961/40 (40 LEDs) MA961/80/ESD (80 LEDs) MA305/100
Light Type LED LED LED LED LED Fluorescent
White Light Options Daylight Daylight Daylight (MA961D/S/ESD),
Cool White (MA961C/S/ESD),
Warm White (MA961W/S/ESD),		 Daylight (MA961D/40),
Cool White (MA961C/40),
Warm White (MA961W/40)		 Daylight (MA961D/80/ESD),
Cool White (MA961C/80/ESD),
Warm White (MA961W/80/ESD)		 Daylight,
Warm White
Number of Bulbs 56 60 40 40 80 1
Wattage 3.5W 10W 4W N/A 5W 8W
Input 100V-240V 100V-240V 100V-240V 100V-240V 100V-240V 100V-240V
Output 12V DC, 0.5A 10W 24V, -0.75A 18W max 24V, -0.75A 18W max 24V, -0.75A 18W max 8W
Inner Diameter 57mm (2.24″) 54.6mm (2.15″) 66.8mm (2.63″) 66.8mm (2.63″) 66.8mm (2.63″) 48mm (1.89″)
Outer Diameter 95.5mm (3.76″) 90mm (3.54″) 101mm (4.01″) 97mm (3.81″) 105mm (4.11″) 90mm (3.54″)
Height 31.75mm (1.25″) 22.8mm (0.9″) 28mm (1.09″) 26mm (1.02″) 26mm (1.02″) 15.8mm (0.662″)
Length 133.8mm (5.27″) 90mm (3.54″) 135mm (5.30″) 151mm (5.94″) 125mm (4.92″) 109mm (4.29″)
Needs Adapter Mount for EMZ Series (MA302) Yes No Yes No No Yes
Needs Adapter Mount for RZ Series (MA308) Yes No Yes No No Yes
DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model FL151 FT191 FL-5000-DG FQ151 FQ-5000-DG TPI6IL
Light Type  Halogen Halogen LED Halogen LED LED
Input 115 V AC (230 V AC available) 120 V AC (230 V AC available) 110 V AC (240V available) 115 V AC (220V available) 110 V AC (220V available) 90-264 VAC
Wattage 150 Watt, 21 V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V 5 Watt
Output 1750 Lumens at fiber optic plane 200 Watt (Max) 2000+ Lumens (12.7mm aperture) 150 Watt 80 Watt 500 Lumens
Fuse Type 3 Amp, 3A slow blow 2, 5 Amp slow blow 0.5A-1.2A 3Amp 2Amp N/A
Color Temperature 3200K 3200K 5000K 3250K 5000K-8300K 6500K
Input Fiber Diameter 15mm or 25mm (optional) 15mm or 25mm (optional) 15mm or 25mm (optional) 15.8mm (0.625″) (other sizes available) 15.8mm (0.625″) N/A
Light Guide Length 584mm (23″) self-supporting 584mm (23″) self-supporting 584mm (23″) self-supporting 609mm (24″) obedient arm 609mm (24″) obedient arm 482.60 mm (19″)
Active Fiber Bundle 0.20″ (5mm) 0.31″ (8mm) 0.20″ (5mm) 0.265” (4.76mm) 0.265” (4.76mm) N/A
Dimensions 6.8” (W) X 5” (H) X 8.3” (D) 8” (W) X 4.75” (H) X 7” (D) 7.0” (W) X 4.9” (H) X 8.8” (D) 7.0” (W) X 6.5” (H) X 7.5” (D) 4.75″ (W) X 6″ (H) X 9″ (D) 4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height)
Weight 7.75lbs 13.5lbs 6lbs 7.5lbs 7 lbs 5.25lbs
ANNULAR ARM  FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model FL152 FT192 FL-5000-RL FQ152 FQ-5000-RL
Light Type  Halogen Halogen LED Halogen LED
Input 115 V AC (230 V AC available) 120 V AC (230 V AC available) 110 V AC (240V available) 115 V AC (220V available) 110 V AC (220V available)
Wattage 150 Watt, 21 V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V
Output 1750 Lumens at fiber optic plane 200 Watt (Max) 2000+ Lumens (12.7mm aperture) 150 Watt 80 Watt
Fuse Type 3 Amp, 3A slow blow 2, 5 Amp slow blow 0.5A-1.2A 3Amp 2Amp
Color Temperature 3200K 3200K 5000K 3250K 5000K-8300K
Input Fiber Diameter 15mm or 25mm (optional) 15mm or 25mm (optional) 15mm or 25mm (optional) 15.8mm (0.625″) (other sizes available) 15.8mm (0.625″)
Light Guide Length 914.4mm (36″) 914.4mm (36″) 914.4mm (36″) 914.4mm (36″) 914.4mm (36″)
Active Fiber Bundle 9.5mm (0.373”) 10mm (0.394″) 9.5mm (0.373”) 9.45mm (0.371″) 9.45mm (0.371″)
Diameter Ring Aperture 60.2mm (2.37″) 60mm (2.36″) 60.2mm (2.37″) 60mm (2.36″) 60mm (2.36″)
Dimensions 6.8” (W) X 5” (H) X 8.3” (D) 8” (W) X 4.75” (H) X 7” (D) 7.0” (W) X 4.9” (H) X 8.8” (D) 7.0” (W) X 6.5” (H) X 7.5” (D) 4.75″ (W) X 6″ (H) X 9″ (D)
Weight 7.75lbs 13.5lbs 6lbs 7.5lbs 7 lbs
SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model FL153 FT193 FL-5000-SG
Light Type  Halogen Halogen LED
Input 115 V AC (230 V AC available) 120 V AC (230 V AC available) 110 V AC (240V available)
Wattage 150 Watt, 21 V 150 Watt, 21V 150 Watt, 21V
Output 1750 Lumens at fiber optic plane 200 Watt (Max) 2000+ Lumens (12.7mm aperture)
Fuse Type 3 Amp, 3A slow blow 2, 5 Amp slow blow 0.5A-1.2A
Color Temperature 3200K 3200K 5000K
Input Fiber Diameter 15mm or 25mm (optional) 15mm or 25mm (optional) 15mm or 25mm (optional)
Light Guide Length 457.2mm (18″) 508mm (24″) 457.2mm (18″)
Active Output Fiber Bundle 6.35mm (0.25″) 6.35mm (0.25″) 6.35mm (0.25″)
Dimensions 6.8” (W) X 5” (H) X 8.3” (D) 8” (W) X 4.75” (H) X 7” (D) 7.0” (W) X 4.9” (H) X 8.8” (D)

Components & Accessories – STEREO

Eyepieces Stands Focus Blocks Holder Auxiliary Lens Illuminators
Eyepieces Stands Focus Blocks Holder Auxiliary Lenses Illuminators
Micrometer Lens Stages Polarizing Accessories Protective Glass Covers Cameras
Micrometer Lens Stages Polarizing Accessories Protective Glass Covers Microscopy Cameras
C" Mounts/Camera Adapters Filters C" Mounts/Camera Adapters
C” Mounts/Camera
Adapters		 Filters Accessories

Additional information

Specifications

Includes:
• Trinocular Body (EMZ-5TR)
• 10X Eyepiece (MA502)
• Pole Stand (P)
• Illuminator (MA961D/40)
• Mount Adapter (MA151/35/03)
• Camera Monitor (HD1500T)

• Meiji Techno Dust Cover (MA703)
• Rubber Eyeguards/Eyeshields (Paired) (MA600)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty Card

Product Information:
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Details

Modular Flexibility:
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.

Superb Optics:
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.

Rugged Dependability:
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.

Ergonomic Design:
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.

Applications:
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!

Related products
