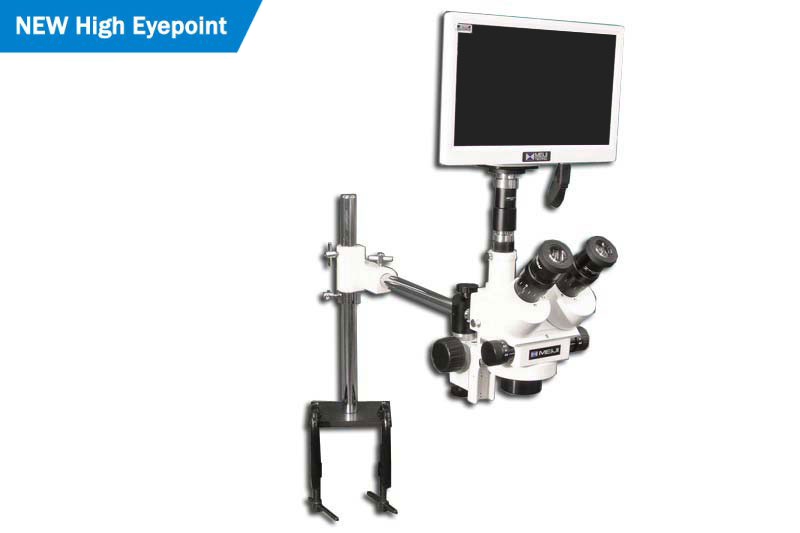

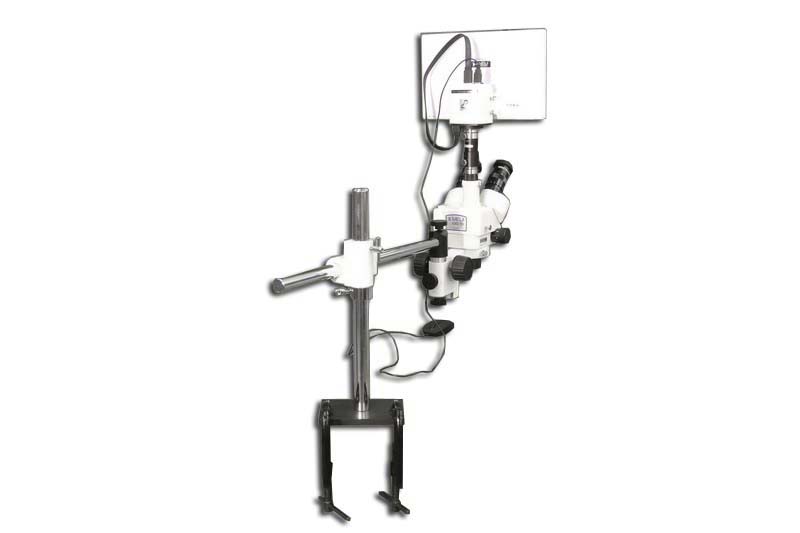

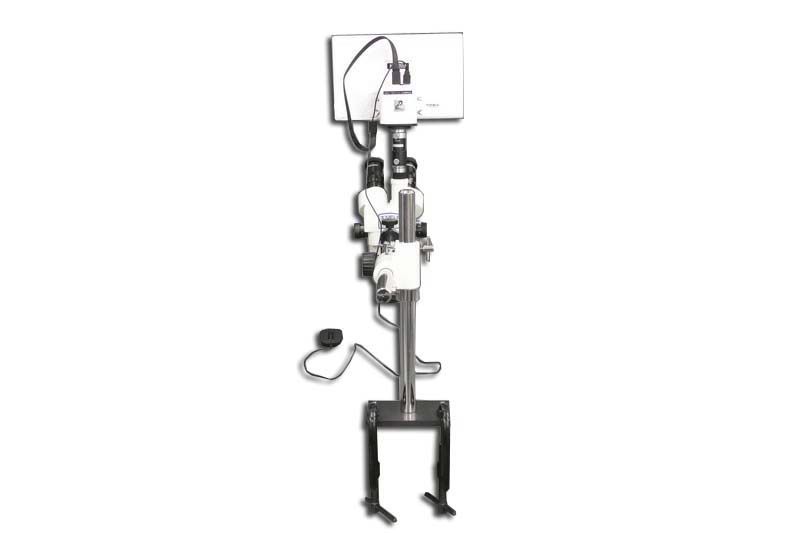

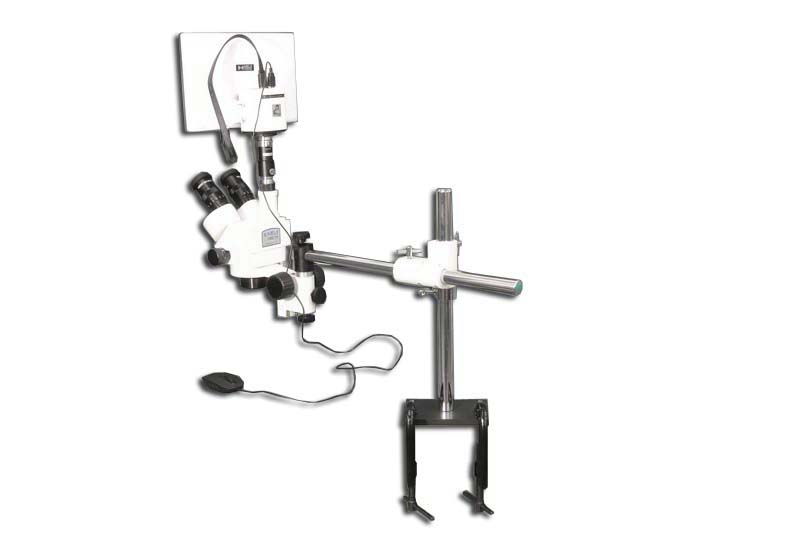

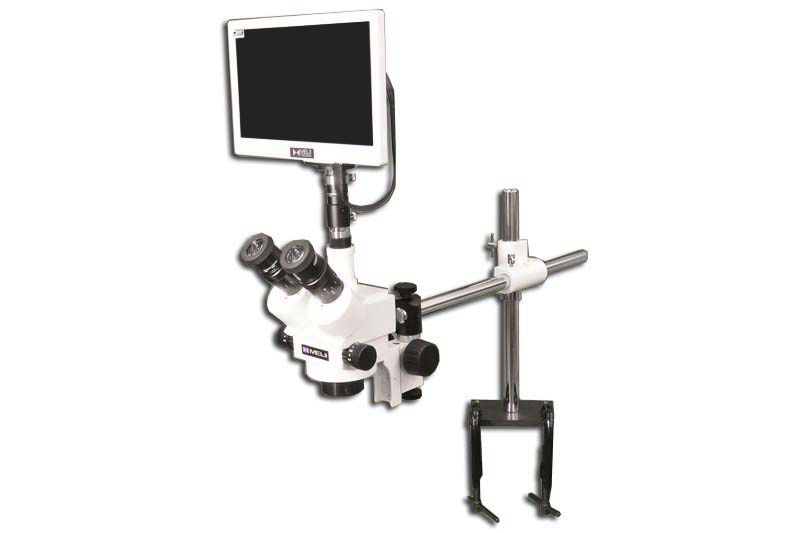

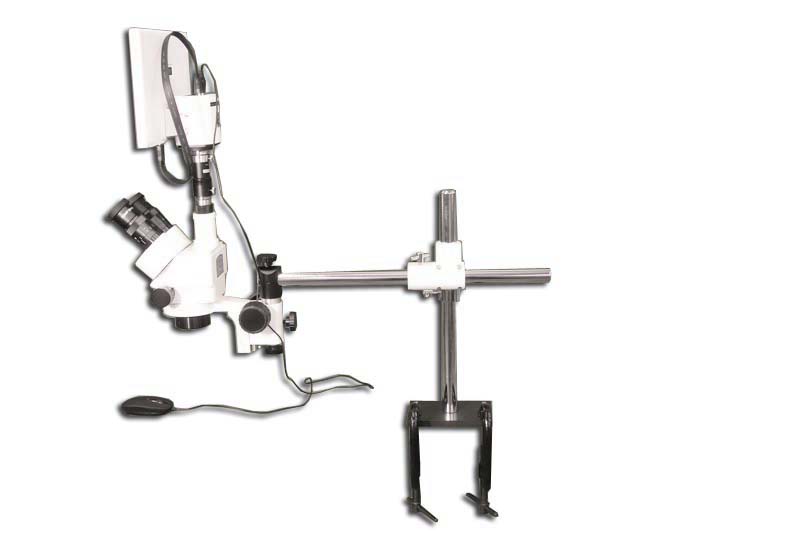

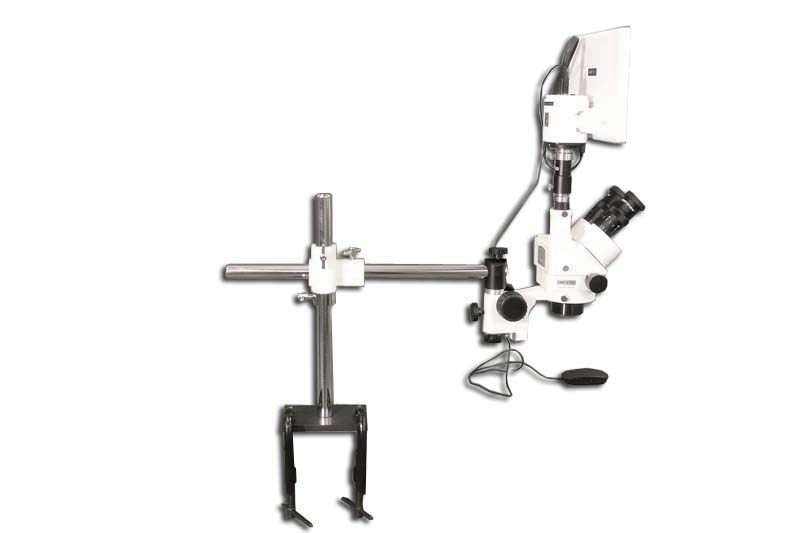

This configuration is a professional stereoscopic inspection and imaging system that lets you examine objects in 3D with adjustable magnification and take high-resolution images and video directly on an integrated HDMI display. It provides ergonomic viewing with a large working distance, making it suitable for industrial inspection, quality control, electronics work, precision measurement, documentation, and teaching/demonstration purposes. The built-in measurement tools in the camera software allow you to measure distances, angles, areas, and more with micron-level accuracy without needing a separate computer.

An industrial stereo microscope is designed for precision inspection, assembly, and analysis applications that require true 3D visualization. Unlike compound microscopes, a stereo zoom microscope provides depth perception and a longer working distance, allowing users to comfortably manipulate parts while observing fine surface details. A trinocular zoom microscope is especially valuable in industrial and laboratory environments because it allows for camera integration, enabling image capture, video recording, training, and documentation.

Description

EMZ-5TR: Trinocular Microscope Head + MA522: Eyepieces + F: Focus Block + S-4500: Stand + MA151/35/03: Adapter + HD1500MET-M: Camera and Monitor (Complete System)

EMZ-5TRH: Microscope Head
The EMZ-5TRH is a new and improved high eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also use a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X). Optional rubber eye guards (MA906) are also available. The EMZ-5TRH trinocular zoom body is used for photography and video applications. When the beamsplitter is engaged, 100% of the light from the left optical path is directed to the phototube. The image can still be viewed through the right eyetube. The EMZ-5TRH employs Greenough optics for improved image flatness and contrast. It offers high resolution erect unreversed stereoscopic images. In addition to its compact design and versatility, a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Photomicrography is made easy with over 300 available digital, analog and SLR camera adapters. Also suitable for eyeglass users.

MA552: Eyepieces
Included is the MA522 Super Widefield Eyepiece, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only).

F: Focus Holder
The F holder is a focusing holder with a rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.

S-4500: Stand
The S-4500 table clamp is Meiji Techno America’s most popular ergonomic boom stand with a sturdy solid metal clamp to fit any industrial lab bench. It is equipped with a pillar, cross-arm and a 20mm drop down mounting post. It accepts F, FX or FC holders (must be ordered separately) or focus blocks with a 20mm mounting hole which are commonly available from microscope manufacturers. It is also equipped with a 400mm (15.74”) vertical pole and a 530mm (20.86”) horizontal pole. The S-4500 table clamp boom stand offers minimal space requirement and versatile vertical post length in its series. The S-4500 can swing out of the way easily, clearing the workstation for other tasks. The horizontal arm can be moved freely left to right or can be securely locked into position with our T handle knobs. Extra length vertical posts are available in other models. The vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies. Anti-rotation is stabilized by a locking pin on the vertical post. The S-4500 Boom stand provides a comfortable amount of space for preparing mice, insects and other model organisms or semiconductor and electrical components. It is designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies. This boom stand is affordable; low costing with high quality safety features which makes this boom stand unmatched value in its class. This stand has ample height and long reach to work on an inspect small to large parts under the microscope. The ergonomic flexibility, chemical resistant paint finish, and corrosion resistant stainless-steel columns makes this boom stand an excellent choice in labs and production facilities.

MA151/35/03: “C” Mount
The MA151/35/03 0.3X lens (21mm reticle mount) video C” mount is used to connect the CCD Camera to the trinocular tube of the EM Series stereo microscope. The smaller the CCD imager is the greater the video magnification. Choosing the correct “C” mount for your application allows you to control the magnification on the video monitor. Meiji Techno offers the following “C” mounts for the EM Series Microscopes.

HD1500MET-M: 6MP Camera
The HD1500MET-M is our full featured 6 MP camera with a 1/3” CMOS chip. A 0.3X C” mount adapter (MA151/35/03) is needed to attach to any standard Meiji Techno America Trinocular Microscope. The HD1500MET-M features a full HD (1080×1920) resolution, which provides high fidelity images with a refresh rate of 60fps- frames per second when connected via HDMI, so there is absolutely no lag in the live video feed when moving your specimen or part. Included with the 11.8” High Definition display is a mounting kit that allows the display to be mounted directly in front of the HD1500MET-M. The 11.8” High Definition display is used with the provided USB 2.0 mouse; with this the user can access menus that provide all the features of the camera such as exposure, white balance, color control (red or blue), gamma, brightness, sharpness, saturation, denoise, color temperature. In addition, it allows the user to save images and videos directly on the full SD card due to the onboard operating system. You can flip the image horizontally, vertically, do a split screen where-in one side of the monitor is a live image and the other half is the captured image. You can also digitally increase/decrease the zoom if needed if your stereo system has reached its magnification potential, this will give you the added digital magnification needed. You can also superimpose a cross-line reticle directly on your live image, first click gives you a red line second click gives you a green line, and the third click omits the crossline. The live video and still shots can be saved directly on the removable full SD card for subsequent image capture. All this is achieved without the need for a PC. You may also connect directly to any monitor or TV with a HDMI port for a wider view if necessary. All USB 2.0, HDMI, SD card, power supply is all supplied. You can also attach a wireless mouse if you choose to go wireless with a third-party mouse.

NOTE:
• 6MP Still resolution 3264×1836
• 2MP Live video 1920×1080 60 fps (frames per second) via HDMI
• 2MP Live video 1920×1080 30 fps (frames per second) via USB2.0

EMZ-5TRH: Microscope Head

The EMZ-5TRH is a New and Improved High Eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also uses a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X) Optional rubber eye guards (MA906) are also available.

Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction
Trinocular Port: 23.2mm I.D, 25.2mm O.D
Zoom Ratio: 6.5:1
Zoom Range: 0.7x – 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x – 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm – 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: High Eyepoint 10x, (MA522- Paired) (required)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x – 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 34mm – 251mm (With auxiliary lenses and eyepieces)
Mounting: Fits 84.5mm Diameter Focus Holders
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)

MA522: Eyepieces

MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)

MA522 Super Widefield High Eyepoint 10X (for EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount.

This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)

F: Focus Block

F Coarse Focus Block/Holder is a focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.

S-4500: Boom Stand

The S-4500 Table Clamp Boom Stand is Meiji Techno America’s most popular Ergonomic boom stand with a sturdy solid metal clamp to fit any industrial lab bench. Equipped with a pillar, crossarm and a 20mm drop down mounting post accepts F, FX or FC holders, (must be ordered separately) or focus blocks with a 20mm mounting hole which are commonly available from microscope manufacturers. Equipped with a 400mm (15.74”) vertical pole and a 530mm (20.86”) horizontal pole. The S-4500 table clamp boom stand offers minimal space requirement and greatest possible vertical post length in its series. The S-4500 can swing out of the way easily, clearing the workstation for other tasks. The horizontal arm can be moved freely left to right or can be securely locked into position with our T handle knobs. Extra length vertical posts are available in other models. The vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies. Anti-rotation is stabilized by a locking pin on the vertical post. The S-4500 Boom stand provides a comfortable amount of space for preparing mice, insects and other model organisms or semiconductor and electrical components. The S-4500 boom stand is designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies. This boom stand is an affordable; low cost with high quality safety features makes this boom stand unmatched value in its class. This stand has ample height and long reach to work on an inspect small to large parts under the microscope. Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless-steel columns make this boom stand an excellent choice in labs and production facilities.

The S-4500 Boom Stand features include:
• S-4500 Table Clamp Boom Stand is Meiji Techno America’s most popular Ergonomic Table Clamp boom stand with pillar, crossarm and 20mm drop down mounting post accepts F, FX or FC holders
• Minimal space requirement and greatest possible amount of work room
• Provides flexible horizontal and vertical movement for large to mid-sized specimens and electronic components
• S-4500 can swing out of the way easily, clearing the workstation for other tasks
• S-4500 Table Clamp Boom stand provides a comfortable amount of space for preparing mice, insects and other model organisms or semiconductor and electrical components
• Safety Collar for vertical stability
• Designed for the zoom (EMZ Series), turret (EMT Series) and fixed (EMF Series) stereo bodies
• Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless-steel columns makes this boom stand an excellent choice in labs and production facilities
• High density rubber feet for vibration stability

MA151/35/03: C” Mount Adapter

C-mount adapter with 0.3X lens, accepts 21mm reticle (Slips over top of existing photo tube – For 1/3″ CCD)

HD1500MET-M: Camera and HDMI Monitor

Includes:
• HD1500MET-M Camera
• 11.8in HDMI Monitor
• HDMI Cable
• USB Cable
• 12V AC/DC Power adapter
• SD Card
• Retina Screen
• Mouse
• “L” Bracket Adapter for Monitor to Camera connectivity
• Application Metrics Software ISCapture
• Packing Box

Stereo Terminology

OPTIONAL ILLUMINATOR ACCESSORIES

RINGLIGHTS (OPTIONAL)
Model	MA962	MA964	MA961D/S/ESD (SLIMLINE)	MA961D/40 (40 LEDs)	MA961D/80/ESD (80 LEDs)	MA305/100

Light Type	LED	LED	LED	LED	LED	Fluorescent
White Light Options	Daylight	Daylight	Daylight, Cool White, Warm White	Daylight, Cool White, Warm White	Daylight, Cool White, Warm White,	Daylight, Warm White
Number of Bulbs	56	60	40	40	80	1
Wattage	3.5W	10W	4W	N/A	5W	8W
Input	100V-240V	100V-240V	100V-240V	100V-240V	100V-240V	100V-240V
Output	12V DC, 0.5A	10W	24V, -0.75A 18W max	24V, -0.75A 18W max	24V, -0.75A 18W max	8W
Inner Diameter	57mm (2.24″)	54.6mm (2.15″)	66.8mm (2.63″)	66.8mm (2.63″)	66.8mm (2.63″)	48mm (1.89″)
Outer Diameter	95.5mm (3.76″)	90mm (3.54″)	101mm (4.01″)	97mm (3.81″)	105mm (4.11″)	90mm (3.54″)
Height	31.75mm (1.25″)	22.8mm (0.9″)	28mm (1.09″)	26mm (1.02″)	26mm (1.02″)	15.8mm (0.662″)
Length	133.8mm (5.27″)	90mm (3.54″)	135mm (5.30″)	151mm (5.94″)	125mm (4.92″)	109mm (4.29″)
Needs Adapter Mount for EMZ Series (MA302)	Yes	No	Yes	No	No	Yes
Needs Adapter Mount for RZ Series (MA308)	Yes	No	Yes	No	No	Yes

DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model	FL151	FT191	FL-5000-DG	FQ151	FQ-5000-DG	TPI6IL

Light Type	Halogen	Halogen	LED	Halogen	LED	LED
Input	115 V AC (230 V AC available)	120 V AC (230 V AC available)	110 V AC (240V available)	115 V AC (220V available)	110 V AC (220V available)	90-264 VAC
Wattage	150 Watt, 21 V	150 Watt, 21V	150 Watt, 21V	150 Watt, 21V	150 Watt, 21V	5 Watt
Output	1750 Lumens at fiber optic plane	200 Watt (Max)	2000+ Lumens (12.7mm aperture)	150 Watt	80 Watt	500 Lumens
Fuse Type	3 Amp, 3A slow blow	2, 5 Amp slow blow	0.5A-1.2A	3Amp	2Amp	N/A
Color Temperature	3200K	3200K	5000K	3250K	5000K-8300K	6500K
Input Fiber Diameter	15mm or 25mm (optional)	15mm or 25mm (optional)	15mm or 25mm (optional)	15.8mm (0.625″) (other sizes available)	15.8mm (0.625″)	N/A
Light Guide Length	584mm (23″) self-supporting	584mm (23″) self-supporting	584mm (23″) self-supporting	609mm (24″) obedient arm	609mm (24″) obedient arm	482.60 mm (19″)
Active Fiber Bundle	0.20″ (5mm)	0.31″ (8mm)	0.20″ (5mm)	0.265” (4.76mm)	0.265” (4.76mm)	N/A
Dimensions	6.8” (W) X 5” (H) X 8.3” (D)	8” (W) X 4.75” (H) X 7” (D)	7.0” (W) X 4.9” (H) X 8.8” (D)	7.0” (W) X 6.5” (H) X 7.5” (D)	4.75″ (W) X 6″ (H) X 9″ (D)	4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height)
Weight	7.75lbs	13.5lbs	6lbs	7.5lbs	7 lbs	5.25lbs

ANNULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model	FL152	FT192	FL-5000-RL	FQ152	FQ-5000-DG

Light Type	Halogen	Halogen	LED	Halogen	LED
Input	115 V AC (230 V AC available)	120 V AC (230 V AC available)	110 V AC (240V available)	115 V AC (220V available)	110 V AC (220V available)
Wattage	150 Watt, 21 V	150 Watt, 21V	150 Watt, 21V	150 Watt, 21V	150 Watt, 21V
Output	1750 Lumens at fiber optic plane	200 Watt (Max)	2000+ Lumens (12.7mm aperture)	150 Watt	80 Watt
Fuse Type	3 Amp, 3A slow blow	2, 5 Amp slow blow	0.5A-1.2A	3Amp	2Amp
Color Temperature	3200K	3200K	5000K	3250K	5000K-8300K
Input Fiber Diameter	15mm or 25mm (optional)	15mm or 25mm (optional)	15mm or 25mm (optional)	15.8mm (0.625″) (other sizes available)	15.8mm (0.625″)
Light Guide Length	914.4mm (36″)	914.4mm (36″)	914.4mm (36″)	914.4mm (36″)	914.4mm (36″)
Active Fiber Bundle	9.5mm (0.373”)	10mm (0.394″)	9.5mm (0.373”)	9.45mm (0.371″)	9.45mm (0.371″)
Diameter Ring Aperture	60.2mm (2.37″)	60mm (2.36″)	60.2mm (2.37″)	60mm (2.36″)	60mm (2.36″)
Dimensions	6.8” (W) X 5” (H) X 8.3” (D)	8” (W) X 4.75” (H) X 7” (D)	7.0” (W) X 4.9” (H) X 8.8” (D)	7.0” (W) X 6.5” (H) X 7.5” (D)	4.75″ (W) X 6″ (H) X 9″ (D)
Weight	7.75lbs	13.5lbs	6lbs	7.5lbs	7 lbs

SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model	FL153	FT193	FL-5000-SG

Light Type	Halogen	Halogen	LED
Input	115 V AC (230 V AC available)	120 V AC (230 V AC available)	110 V AC (240V available)
Wattage	150 Watt, 21 V	150 Watt, 21V	150 Watt, 21V
Output	1750 Lumens at fiber optic plane	200 Watt (Max)	2000+ Lumens (12.7mm aperture)
Fuse Type	3 Amp, 3A slow blow	2, 5 Amp slow blow	0.5A-1.2A
Color Temperature	3200K	3200K	5000K
Input Fiber Diameter	15mm or 25mm (optional)	15mm or 25mm (optional)	15mm or 25mm (optional)
Light Guide Length	457.2mm (18″)	508mm (24″)	457.2mm (18″)
Active Output Fiber Bundle	6.35mm (0.25″)	6.35mm (0.25″)	6.35mm (0.25″)
Dimensions	6.8” (W) X 5” (H) X 8.3” (D)	8” (W) X 4.75” (H) X 7” (D)	7.0” (W) X 4.9” (H) X 8.8” (D)
Weight	7.75lbs	13.5lbs	6lbs

EM STEREO SERIES BROCHURE

(CLICK TO DOWNLOAD FULL BROCHURE)

Additional information

Specifications	Includes: • Trinocular Body (EMZ-5TRH) • 10X Eyepiece (MA522) • Focus Block (F) • Boom Stand (S-4500) • Mount Adapter (MA151/35/03) • Camera Monitor (HD1500MET-M) • Meiji Techno Dust Cover (MA703) • Rubber Eyeguards/Eyeshields (Paired) (MA600) • EMZ Meiji Techno Instruction Manual • Limited Lifetime Warranty Card Product Information: Manufacturer: MADE IN JAPAN Warranty: LIMITED LIFETIME WARRANTY
Details	Modular Flexibility: EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today. Superb Optics: Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line. Rugged Dependability: All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products. Ergonomic Design: All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements. Applications: EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!

Specifications

Includes:
• Trinocular Body (EMZ-5TRH)
• 10X Eyepiece (MA522)
• Focus Block (F)
• Boom Stand (S-4500)
• Mount Adapter (MA151/35/03)
• Camera Monitor (HD1500MET-M)
• Meiji Techno Dust Cover (MA703)
• Rubber Eyeguards/Eyeshields (Paired) (MA600)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty Card

Product Information:
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY

Details

Modular Flexibility:
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.

Superb Optics:
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.

Rugged Dependability:
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.

Ergonomic Design:
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.

Applications:
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!
