EMZ-5TRH: Trinocular Microscope Head + MA522: Eyepieces + PC: Stand + MA151/35/03: Adapter + HD1000-LITE-M: Camera and Monitor (Complete System)
EMZ-5TRH: Microscope Head
The EMZ-5TRH is a New and Improved High Eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also uses a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X) Optional rubber eye guards (MA906) are also available. The EMZ-5TRH trinocular zoom body is used for photography and video applications. When the beamsplitter is engaged 100% of the light from the left optical path is directed to the phototube. The image can still be viewed through the right eye tube. The EMZ-5TRH employs Greenough optics, for improved image flatness and contrast. The EMZ-5TRH offers high resolution erect unreversed stereoscopic image. In addition to its compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Photomicrography made easy with over 300 available digital, analog and SLR camera adapters. Suitable for eyeglass users.
MA522: Eyepieces
Included is the MA522 Super Widefield Eyepiece, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only)
PC Stand
The PC stand in Meiji Techno America’s basic precision pole stand with “FC” focusing holder with coaxial coarse and fine focus block mounted on a plain base. This stand is designed for applications where precise fine focus adjustment is required. It accepts our EMZ, EMT and EMF stereomicroscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The PC stands compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built-in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.
MA151/35/03: Video C-Mount Lens
The MA151/35/03 0.3X lens (21mm reticle mount) video “C” mount is used to connect the CCD Camera to the trinocular tube of the EM Series stereo microscope. The smaller the CCD imager the greater the video magnification. Choosing the correct C” mount for your application allows you to control the magnification on the video monitor. Meiji Techno offers the following “C” mounts for the EM Series Microscopes.
HD1000-LITE-M: CMOS Digital Camera
Included is the HD1500TM Digital CMOS camera mounted directly to the microscopes trinocular port using the proper C” mount adapter that match’s the chip size of the camera. The display, featuring full HD (1080×1920) resolution, provides high fidelity images from the HD1500TM with a refresh rate of 60 frames per second. Included with the display is a mounting kit that allows the display to be mounted directly on the HD1500TM. The incredibly disruptive aspect of the display is that when used with the (supplied) mouse, the user can access menus that provide all the features of the camera such as exposure, white balance, gamma etc. plus allow the user to save images and videos to the cameras removable SD card for subsequent offline analysis. All this is achieved with or without the need for a PC.
Resolution:
6MP Still resolution 3264×1836, 2MP Live video 1920×1080 60 fps (frames per second) via HDMI, 2MP Live video 1920×1080 30 fps (frames per second) via USB2.0
EMZ-5TRH: Microscope Head
The EMZ-5TRH is a New and Improved High Eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also uses a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X) Optional rubber eye guards (MA906) are also available.
Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction
Trinocular Port: 23.2mm I.D, 25.2mm O.D
Zoom Ratio: 6.5:1
Zoom Range: 0.7x – 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x – 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm – 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: High Eyepoint 10x, ( MA522- Paired) (required)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x – 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 34mm – 251mm (With auxiliary lenses and eyepieces)
Mounting: Fits 84.5mm Diameter Focus Holders
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
MA522: Eyepieces
MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)
MA522 Super Widefield High Eyepoint 10X (for EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount.
This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
PC: Stand
The PC Pole Stand with FC Focus Block/Holder stand in Meiji Techno America’s basic precision pole stand with “FC” focusing holder with coaxial coarse and fine focus block mounted on a plain base. This stand is designed for applications where precise fine focus adjustment is required. It accepts our EMZ, EMT and EMF stereomicroscope bodies. Supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin and two stainless steel stage clips and a 20mm diameter vertical pole. The PC stands compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.
Dimensions: 150mm (5.9″) wide by 230mm (9.05″) deep
Pillar Height: 9” height -20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: FC Focus Holder Block with coaxial coarse and fine focusing slide block included with 84.2 mm diameter opening which accepts 84 mm stereo body. Rack and pinion mount allows smooth precise focusing over 33mm of travel, fits 20mm mounting post. Coarse focus mechanism incorporates a slip clutch and tension adjustment (FC holder)
Illumination Port: No illumination, requires an external illuminator for lighting
MA151/35/03: Video C-Mount Adapter Lens

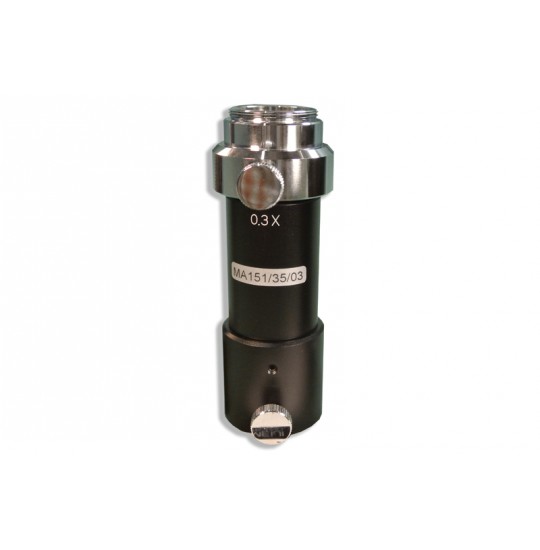

C-mount adapter with 0.3X lens, accepts 21mm reticle (Slips over top of existing photo tube – For 1/3″ CCD)
HD1000-LITE-M: Camera and HDMI Monitor
Includes:

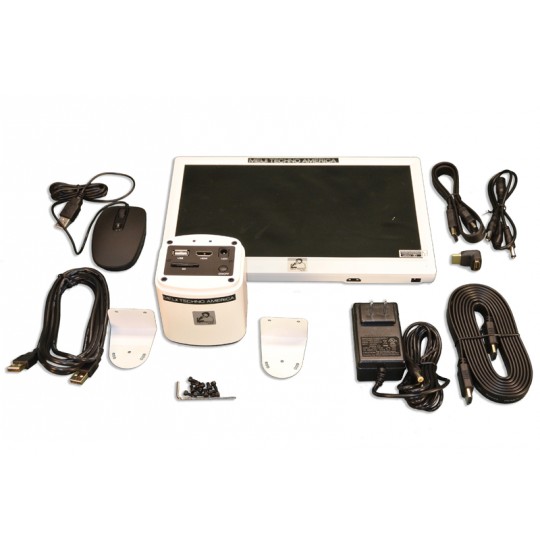

• HD1000-LITE – Camera HDMI 1/3 “ CMOS CHIP
• HDMI to HDMI Cable 3 foot long cable
• USB 2.0 to USB2.0 cable
• Full SD CARD-H4SD card(4G)
• Power Supply 12V AC./DC adapter
• USB 2.0 Mouse
• Measurement Software with Annotation Feature Installation Disc
• 11.6″ Monitor
Package Information:
• 5lbs
• 12 x 10 x 4 inches
EM STEREO SERIES BROCHURE
(CLICK TO DOWNLOAD FULL BROCHURE)
OPTIONAL CAMERA ACCESSORIES
| CAMERAS (OPTIONAL) | ||||
| Model | HD1000-LITE | HD1500T | HD1500MET | HD1500MET-AF |
 |
 |
 |
 |
|
| Type | HDMI/USB 2.0 | HDMI/USB 2.0Basic Measurement Features | HDMI/USB 2.0Metrics Measurement Features | HDMI/USB 2.0Auto-focusing/Z stack & stitching |
| Version | Color | Color | Color | Color |
| Mega Pixels | 5MP | 2-6MP | 2-6MP | 2-6MP |
| Resolution | 2592 x 1944 | 3264 x 1840 Static 1920 x 1080 Dynamic |
3264 x 1840 Static 1920 x 1080 Dynamic |
3264 x 1840 Static 1920 x 1080 Dynamic |
| Frame Rate (FPS) | 15fps by HDMI 15fps by USB 2.0 |
60fps by HDMI 30fps by USB 2.0 |
60fps by HDMI 30fps by USB 2.0 |
60fps by HDMI 30fps by USB 2.0 |
| Sensor | 1/2.5″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS |
| C-mount | 0.3X | 0.3X | 0.3X | 0.3X |
| CAMERAS WITH MONITORS (OPTIONAL) | ||||
| Model | HD1000-LITE-M | HD1500TM | HD1500MET-M | HD1500MET-M-AF |
 |
 |
 |
 |
|
| Type | HDMI/USB 2.0 | HDMI/USB 2.0Basic Measurement Features | HDMI/USB 2.0Metrics Measurement Features | HDMI/USB 2.0Auto-focusing/Z stack & stitching |
| Monitor Size | 11.8″ | 11.8″ | 11.8″ | 11.8″ |
| Version | Color | Color | Color | Color |
| Mega Pixels | 5MP | 2-6MP | 2-6MP | 2-6MP |
| Resolution | 2592 x 1944 | 3264 x 1840 Static 1920 x 1080 Dynamic |
3264 x 1840 Static 1920 x 1080 Dynamic |
3264 x 1840 Static 1920 x 1080 Dynamic |
| Frame Rate (FPS) | 15fps by HDMI 15fps by USB 2.0 |
60fps by HDMI 30fps by USB 2.0 |
60fps by HDMI 30fps by USB 2.0 |
60fps by HDMI 30fps by USB 2.0 |
| Sensor | 1/2.5″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS |
| C-mount | 0.3X | 0.3X | 0.3X | 0.3X |
OPTIONAL ILLUMINATOR ACCESSORIES
| RINGLIGHTS (OPTIONAL) | ||||||
| Model | MA962 | MA964 | MA961/S/ESD (SLIMLINE) | MA961/40 (40 LEDs) | MA961/80/ESD (80 LEDs) | MA305/100 |
 |
 |
 |
 |
 |
 |
|
| Light Type | LED | LED | LED | LED | LED | Fluorescent |
| White Light Options | Daylight | Daylight | Daylight (MA961D/S/ESD), Cool White (MA961C/S/ESD), Warm White (MA961W/S/ESD), |
Daylight (MA961D/40), Cool White (MA961C/40), Warm White (MA961W/40) |
Daylight (MA961D/80/ESD), Cool White (MA961C/80/ESD), Warm White (MA961W/80/ESD) |
Daylight, Warm White |
| Number of Bulbs | 56 | 60 | 40 | 40 | 80 | 1 |
| Wattage | 3.5W | 10W | 4W | N/A | 5W | 8W |
| Input | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V |
| Output | 12V DC, 0.5A | 10W | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 8W |
| Inner Diameter | 57mm (2.24″) | 54.6mm (2.15″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 48mm (1.89″) |
| Outer Diameter | 95.5mm (3.76″) | 90mm (3.54″) | 101mm (4.01″) | 97mm (3.81″) | 105mm (4.11″) | 90mm (3.54″) |
| Height | 31.75mm (1.25″) | 22.8mm (0.9″) | 28mm (1.09″) | 26mm (1.02″) | 26mm (1.02″) | 15.8mm (0.662″) |
| Length | 133.8mm (5.27″) | 90mm (3.54″) | 135mm (5.30″) | 151mm (5.94″) | 125mm (4.92″) | 109mm (4.29″) |
| Needs Adapter Mount for EMZ Series (MA302) | Yes | No | Yes | No | No | Yes |
| Needs Adapter Mount for RZ Series (MA308) | Yes | No | Yes | No | No | Yes |
| DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | ||||||
| Model | FL151 | FT191 | FL-5000-DG | FQ151 | FQ-5000-DG | TPI6IL |
 |
 |
 |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED | Halogen | LED | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) | 90-264 VAC |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 5 Watt |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt | 500 Lumens |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp | N/A |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K | 6500K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) | N/A |
| Light Guide Length | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 609mm (24″) obedient arm | 609mm (24″) obedient arm | 482.60 mm (19″) |
| Active Fiber Bundle | 0.20″ (5mm) | 0.31″ (8mm) | 0.20″ (5mm) | 0.265” (4.76mm) | 0.265” (4.76mm) | N/A |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) | 4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs | 5.25lbs |
| ANNULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||||
| Model | FL152 | FT192 | FL-5000-RL | FQ152 | FQ-5000-RL |
 |
 |
 |
 |
|
|
| Light Type | Halogen | Halogen | LED | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) |
| Light Guide Length | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) |
| Active Fiber Bundle | 9.5mm (0.373”) | 10mm (0.394″) | 9.5mm (0.373”) | 9.45mm (0.371″) | 9.45mm (0.371″) |
| Diameter Ring Aperture | 60.2mm (2.37″) | 60mm (2.36″) | 60.2mm (2.37″) | 60mm (2.36″) | 60mm (2.36″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs |
| SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||
| Model | FL153 | FT193 | FL-5000-SG |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A |
| Color Temperature | 3200K | 3200K | 5000K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) |
| Light Guide Length | 457.2mm (18″) | 508mm (24″) | 457.2mm (18″) |
| Active Output Fiber Bundle | 6.35mm (0.25″) | 6.35mm (0.25″) | 6.35mm (0.25″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) |
