Description
EMZ-8TRH: Trinocular Microscope Head + MA522: Eyepieces + P: Stand + MA961C/80/ESD: Illuminator + MA151/35/03: Adapter + HD1500T: Camera (Complete System)
EMZ-8TRH: Microscope Head
The EMZ-8TRH is a new and improved high eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also use a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X). Optional rubber eye guards (MA906) are also available. The EMZ-8TRH Trinocular High Eyepoint with 0.7x-4.5x zoom ratio offers direct light to all three viewing ports simultaneously. The EMZ-8TRH is designed for high-contrast images and has an excellent zoom range of 6.5:1 that is parfocalled all throughout the zoom range. It has Greenough optics for improved image flatness and contrast which results in brighter images at the periphery of the field of view. The EMZ-8TRH offers erect unreversed stereoscopic images providing high resolution observation in precision-oriented semi-conductor, medical device and routine inspection.
MA522: High Eye Point Eyepieces
Included is the MA522 Super Widefield Eyepiece, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only).
P: Pole Stand
The P stand in Meiji Techno America’s basic pole stand with “F” focusing holder mounted on a plain base. It accepts our EMZ, EMT and EMF stereo microscope bodies. It is supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin, two stainless steel stage clips and a 20mm diameter vertical pole. The P stand’s compact design allows users to maximize their work area, so that operation in limited space becomes possible. Since there is no built-in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.
MA961C/80/ESD: Cool LED
The MA961C/80/ESD is designed with an inner and outer quadrant cool white LED ring populated by 80 high quality, extremely bright, which can be controlled in 8 segmented white LEDs. The inner and outer rings of LED’s are set at different angles to create uniform illumination across a wide range of working distances. The MA961C/80/ESD it has 4500K illumination. Each ring and LED segment can be independently controlled using advanced eight segment LED controller. Dual dimming controls provide maximum color stability at all dimming levels. CNC-machined from a solid block of aluminum alloy allowing optimal thermal management and performance in a rugged attractive package. The MA961C/80/ESD comes standard with a universal power source for worldwide operation.
MA151/35/03: Video CCD “C” Mount
The MA151/35/03 0.3X lens (21mm reticle mount) video C” mount is used to connect the CCD Camera to the trinocular tube of the EM Series stereo microscope. The smaller the CCD imager the greater the video magnification. Choosing the correct C” mount for your application allows you to control the magnification on the video monitor. Meiji Techno offers the following “C” mounts for the EM Series Microscopes.
HD1500T: Camera
The HD1500T can be mounted directly to any HDMI monitor or PC via USB 2.0 or HDMI connectivity and can be used with the provided USB 2.0 mouse, with this the user can access menus that provide all the features of the camera such as exposure, white balance, color control (red or blue), gamma, brightness, sharpness, saturation, denoise, color temperature plus allows the user to save images and videos directly on the full SD card due to the onboard operating system. You can flip the image horizontally, vertically, do a split screen where-in one side of the monitor is a live image and the other half is the captured image. You can also digitally increase/decrease the zoom if needed if your stereo system has reached its magnification potential, this will give you the added digital magnification needed. You can also superimpose a cross-line reticle directly on your live image, first click gives you a red line second click gives you a green line, and the third click omits the crossline. The live video and still shots can be saved directly on the removable full SD card for subsequent image capture. All this is achieved without the need for a PC.
NOTE:
• 6MP Still resolution 3264×1836
• 2MP Live video 1920×1080 60 fps (frames per second) via HDMI
• 2MP Live video 1920×1080 30 fps (frames per second) via USB2.0
EMZ-8TRH: Microscope Head
Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction
Trinocular Port: 23.2mm I.D, 25.2mm O.D
Zoom Ratio: 6.5:1
Zoom Range: 0.7x – 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x – 45x (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm – 5.1mm
Working distance: 104mm
Eyetube Inclination: 45°
Eyepieces: High Eyepoint 10x, (MA522- Paired) (required)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.45x – 202.5x (With auxiliary lenses and eyepieces)
Extended Working Distances: 57mm – 250mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.28x (300mm), 0.35x (250mm), 0.44x (184mm), 0.5x (174mm), 1.5x (57mm), and 2x (36.6mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
MA522: Eyepieces
MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)
MA522 Super Widefield High Eyepoint 10X (for EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount.
This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
P: Pole Stand
Dimensions: 150mm (5.9″) wide by 230mm (9.05″) deep
Pillar Height: 9” height – 20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: F Focus Holder Block included with 84.2 mm diameter opening which accepts 84 mm stereo body. Rack and pinion mount allows smooth precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment (F holder)
Illumination Port: No illumination, requires an external illuminator for lighting
MA961C/80/ESD: Ring Illuminator
The MA961/80 line features 80 powerful and precision aligned LEDs for shadow free illumination across a wide range of working distances. Dual dimmers and up to 8 separately controllable banks provide excellent control over the illumination. The proprietary controller is designed for durability and to provide a DC supply that eliminates flicker or strobing effects. An auto voltage sensing 100 – 240 VAC power supply is included.
The M961/80/ESD Safe models are carefully constructed by starting with an aluminum alloy that is precision machined. These parts are then subjected to a multi-step proprietary coating process that both protects the alloy and preserves surface electrical conductivity.
Key Specifications:
• Dual Dimmers
• 8 Separately Controllable Banks – 4500K
• 90 Degree Segment Control
• Auto Voltage Sensing Power Supply
• ESD Compliant
• Standard Working Distance
MA151/35/03: C” Mount Adapter
C-mount adapter with 0.3X lens, accepts 21mm reticle (Slips over top of existing photo tube – For 1/3″ CCD)
HD1500T: Camera

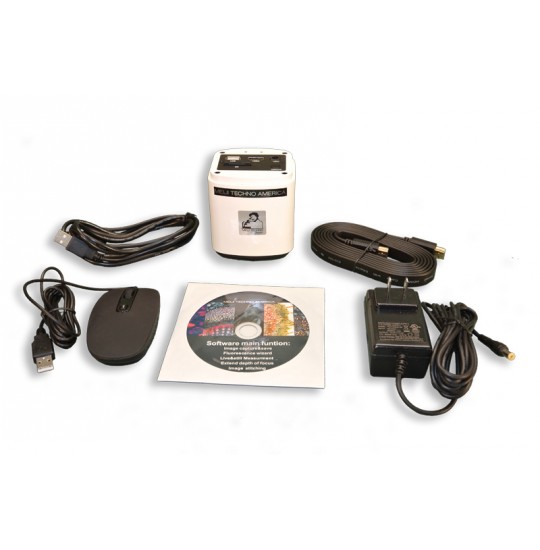

Includes:
• HD1500T Camera
• HDMI Cable
• USB Cable
• 12V AC/DC Power adapter
• SD Card
• Mouse
• Application Software ISCapture
• Packing Box
Package Information:
• 5lbs
• 12 x 10 x 4 inches
EM STEREO SERIES BROCHURE
(CLICK TO DOWNLOAD FULL BROCHURE)
OPTIONAL CAMERA ACCESSORIES
| CAMERAS (OPTIONAL) | |||||
| Model | HD1000-LITE | HD1500T | HD1500MET | HD1500MET-AF | HD4500K |
 |
 |
 |
 |
 |
|
| Type | HDMI/USB 2.0 | HDMI/USB 2.0Basic Measurement Features | HDMI/USB 2.0Metrics Measurement Features | HDMI/USB 2.0Auto-focusing/Z stack & stitching | HDMI/USB/SD/LAN/WiFi |
| Version | Color | Color | Color | Color | Color |
| Mega Pixels | 5MP | 2-6MP | 2-6MP | 2-6MP | 8MP |
| Resolution | 2592 x 1944 | 3264 x 1840 Static1920 x 1080 Dynamic | 3264 x 1840 Static1920 x 1080 Dynamic | 3264 x 1840 Static1920 x 1080 Dynamic | 3840 x 2160 |
| Frame Rate (FPS) | 15fps by HDMI15fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 60fps by HDMI |
| Sensor | 1/2.5″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS | 1/1.8’’ CMOS |
| C-mount | 0.3X | 0.3X | 0.3X | 0.3X | 0.3X |
| CAMERAS WITH MONITORS (OPTIONAL) | |||||
| Model | HD1000-LITE-M | HD1500TM | HD1500MET-M | HD1500MET-M-AF | HD4500K-M |
 |
 |
 |
 |
 |
|
| Type | HDMI/USB 2.0 | HDMI/USB 2.0Basic Measurement Features | HDMI/USB 2.0Metrics Measurement Features | HDMI/USB 2.0Auto-focusing/Z stack & stitching | HDMI/USB/SD/LAN/WiFi |
| Monitor Size | 11.8″ | 11.8″ | 11.8″ | 11.8″ | 13.3” |
| Version | Color | Color | Color | Color | Color |
| Mega Pixels | 5MP | 2-6MP | 2-6MP | 2-6MP | 8MP |
| Resolution | 2592 x 1944 | 3264 x 1840 Static1920 x 1080 Dynamic | 3264 x 1840 Static1920 x 1080 Dynamic | 3264 x 1840 Static1920 x 1080 Dynamic | 3840 x 2160 |
| Frame Rate (FPS) | 15fps by HDMI15fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 60fps by HDMI30fps by USB 2.0 | 30fps by HDMI30fps by USB |
| Sensor | 1/2.5″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS | 1/2.8″ CMOS | 1/1.8” CMOS |
| C-mount | 0.3X | 0.3X | 0.3X | 0.3X | 0.3X |
OPTIONAL ILLUMINATOR ACCESSORIES
| RINGLIGHTS (OPTIONAL) | ||||||
| Model | MA962 | MA964 | MA961/S/ESD (SLIMLINE) | MA961/40 (40 LEDs) | MA961/80/ESD (80 LEDs) | MA305/100 |
 |
 |
 |
 |
 |
 |
|
| Light Type | LED | LED | LED | LED | LED | Fluorescent |
| White Light Options | Daylight | Daylight | Daylight (MA961D/S/ESD), Cool White (MA961C/S/ESD), Warm White (MA961W/S/ESD), |
Daylight (MA961D/40), Cool White (MA961C/40), Warm White (MA961W/40) |
Daylight (MA961D/80/ESD), Cool White (MA961C/80/ESD), Warm White (MA961W/80/ESD) |
Daylight, Warm White |
| Number of Bulbs | 56 | 60 | 40 | 40 | 80 | 1 |
| Wattage | 3.5W | 10W | 4W | N/A | 5W | 8W |
| Input | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V | 100V-240V |
| Output | 12V DC, 0.5A | 10W | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 24V, -0.75A 18W max | 8W |
| Inner Diameter | 57mm (2.24″) | 54.6mm (2.15″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 66.8mm (2.63″) | 48mm (1.89″) |
| Outer Diameter | 95.5mm (3.76″) | 90mm (3.54″) | 101mm (4.01″) | 97mm (3.81″) | 105mm (4.11″) | 90mm (3.54″) |
| Height | 31.75mm (1.25″) | 22.8mm (0.9″) | 28mm (1.09″) | 26mm (1.02″) | 26mm (1.02″) | 15.8mm (0.662″) |
| Length | 133.8mm (5.27″) | 90mm (3.54″) | 135mm (5.30″) | 151mm (5.94″) | 125mm (4.92″) | 109mm (4.29″) |
| Needs Adapter Mount for EMZ Series (MA302) | Yes | No | Yes | No | No | Yes |
| Needs Adapter Mount for RZ Series (MA308) | Yes | No | Yes | No | No | Yes |
| DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | ||||||
| Model | FL151 | FT191 | FL-5000-DG | FQ151 | FQ-5000-DG | TPI6IL |
 |
 |
 |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED | Halogen | LED | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) | 90-264 VAC |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 5 Watt |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt | 500 Lumens |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp | N/A |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K | 6500K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) | N/A |
| Light Guide Length | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 584mm (23″) self-supporting | 609mm (24″) obedient arm | 609mm (24″) obedient arm | 482.60 mm (19″) |
| Active Fiber Bundle | 0.20″ (5mm) | 0.31″ (8mm) | 0.20″ (5mm) | 0.265” (4.76mm) | 0.265” (4.76mm) | N/A |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) | 4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs | 5.25lbs |
| ANNULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||||
| Model | FL152 | FT192 | FL-5000-RL | FQ152 | FQ-5000-RL |
 |
 |
 |
 |
|
|
| Light Type | Halogen | Halogen | LED | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) | 115 V AC (220V available) | 110 V AC (220V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) | 150 Watt | 80 Watt |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A | 3Amp | 2Amp |
| Color Temperature | 3200K | 3200K | 5000K | 3250K | 5000K-8300K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15.8mm (0.625″) (other sizes available) | 15.8mm (0.625″) |
| Light Guide Length | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) | 914.4mm (36″) |
| Active Fiber Bundle | 9.5mm (0.373”) | 10mm (0.394″) | 9.5mm (0.373”) | 9.45mm (0.371″) | 9.45mm (0.371″) |
| Diameter Ring Aperture | 60.2mm (2.37″) | 60mm (2.36″) | 60.2mm (2.37″) | 60mm (2.36″) | 60mm (2.36″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) | 7.0” (W) X 6.5” (H) X 7.5” (D) | 4.75″ (W) X 6″ (H) X 9″ (D) |
| Weight | 7.75lbs | 13.5lbs | 6lbs | 7.5lbs | 7 lbs |
| SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL) | |||
| Model | FL153 | FT193 | FL-5000-SG |
 |
 |
 |
|
| Light Type | Halogen | Halogen | LED |
| Input | 115 V AC (230 V AC available) | 120 V AC (230 V AC available) | 110 V AC (240V available) |
| Wattage | 150 Watt, 21 V | 150 Watt, 21V | 150 Watt, 21V |
| Output | 1750 Lumens at fiber optic plane | 200 Watt (Max) | 2000+ Lumens (12.7mm aperture) |
| Fuse Type | 3 Amp, 3A slow blow | 2, 5 Amp slow blow | 0.5A-1.2A |
| Color Temperature | 3200K | 3200K | 5000K |
| Input Fiber Diameter | 15mm or 25mm (optional) | 15mm or 25mm (optional) | 15mm or 25mm (optional) |
| Light Guide Length | 457.2mm (18″) | 508mm (24″) | 457.2mm (18″) |
| Active Output Fiber Bundle | 6.35mm (0.25″) | 6.35mm (0.25″) | 6.35mm (0.25″) |
| Dimensions | 6.8” (W) X 5” (H) X 8.3” (D) | 8” (W) X 4.75” (H) X 7” (D) | 7.0” (W) X 4.9” (H) X 8.8” (D) |
