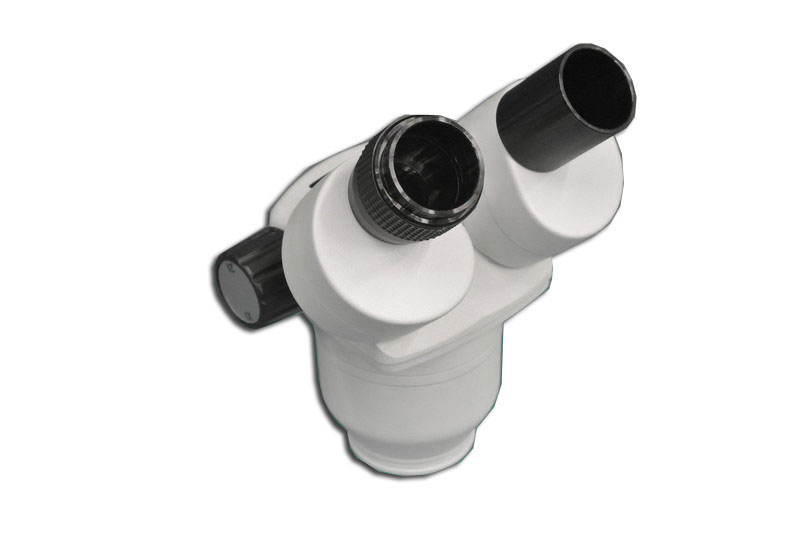

GMT-1 – Binocular Turret Stereo Body Microscope (Dual Power)

GMT-1 is a binocular turret stereo microscope body (dual power) that has 1X and 2X objectives. Hence, the magnification range is 10X and 20X. It also has a 45° eyetube angle with an eyetube diameter of 30 mm.

Locate a DealerGet a Quote

ceisorohs

SKU: GMT-1 Category:

Additional information

Weight 1.0000 kg
Specifications

GMT-1 Binocular Zoom Body Info:• Body Optical System: Finite• Body Magnification: 10X/20X• Power Switch Range: 10X/20X• Power Change Mode: with Two Horizontal Knobs• Observation Method" Binocular• Body Mounting Size for Stand: ?76mm• Nosepiece Adapter Size for Ring Light: ?54mm• Eyetube Adjustment Mode: Siedentopf• Eyetube Angle: 45°• Erect/Inverted Image: Erect Image• Eyetuve Rotatable: 360° Rotatable• Interpupillary Adjustment: 52-76mm• Eyetube Inner Diameter: ?30mm• Eyetube Diopter Adjustable: Left ±6° Right Not Adjustable• Eyepiece Type: Standard Eyepiece• Eyepiece Optical Magnification: 10X• Plan Eyepiece: Plan Eyepiece• Eyepiece Size for Eyetube: ?30mm• Eyepiece Field of View: ?23mm• Eyepoint Type: High Eyepoint Eyepiece• Eye Guard Installation: Independent Eye Guard• Eye Guard Material: Rubber• Eye Guard Mount Size: ?34mm• Objective Working Distance: 105mm• Surface Treatment: Spray Paint• Material: Metal• Color: White• Net Weight: 1.09kg (2.40lbs)
