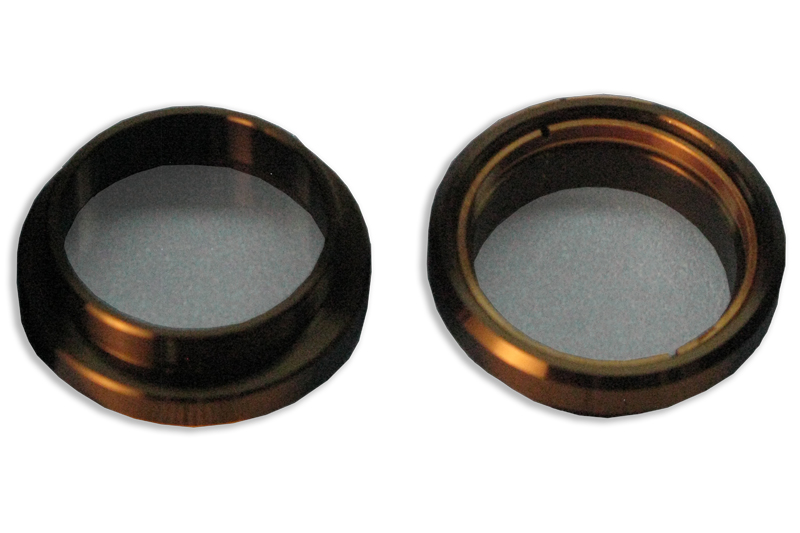

MS-24 Protective Glass

For MS-3 and all Short UNIMACs, use WITHOUT auxiliary lens

NOTE: Additional items are needed to create a full microscope system. The following components are normally ordered:
• Zoom macroscope objective (MS-3 or MS-3D)
• Viewing head (Straight tube, monocular, binocular, or trinocular)
• Eyepieces (10X, 15X or 20X)
• Auxiliary Lens (0.5X, 0.75X, 1.5X or 2.0X)
• Focus holder/block
• Stands (Pole stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands)
• Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
• Stage (Optional)
• Camera (CMOS or CCD with female C” mount or SLR type cameras) and Camera Adapters (Optional)

OR
• Zoom macroscope objective (MS-50D, MS-50R or MS-50DR)
• Auxiliary Lens (0.5X, 0.75X, 1.5X or 2.0X)
• Focus holder/block
• Stands (Pole stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands)
• Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
• Stage (Optional)
• Camera (Accepts with female C” mount threads, CMOS, CCD or Digital SLR type cameras)

Made In Japan

Locate a DealerGet a Quote

SKU: ms-24_protective_glass_ms-50 Categories: ,

Description

The UNIMAC Series features include:

  • Superb Optical Quality
  • 0.7X to 4.5X Zoom Ratio
  • Maintains excellent parfocality throughout zoom range
  • Variety of auxiliary lenses and polarizing filters
  • On screen video magnifications range from 1.75X to 500X or more
  • Wide range of accessories including stands, focusing, illumination, polarized accessories and camera adapters
  • Many configurations available

UNIMAC Macroscopes:
UNIMAC Macroscopes are a fully modular universal zoom macroscope system with a wide array of features and the versatile modular lens systems is suited for a variety of applications. Perfect for industrial, medical, educational, research applications as well as custom or OEM applications. A visual magnificaiton range from 3.5X to 135X (with optional lenses) shows the exceptional clarity and depth of field.

The UNIMAC Macroscopes is uniquely capable where low magnification ranges and extraordinary depth of field is required. There characteristics make them most useful in the examination of whole devices and the study and control of mini-manufacturing processes. The UNIMAC Macroscopes offers important advantages to the user. It is fully modular in concept and in construction. A universal range of the techniques can be quickly applied and all modes of observation – visual, photographic and television can be employed.

The UNIMAC Macroscopes magnification range goes from 0.7X – 4.5X, but can be modified and extended by our auxiliary lenses. Additional illumination can be added, such as our true coaxial illuminator, which gives a large field of view. Also available is the 1/4 wave plate in a rotatable mount which permits inspections in polarized light. Which is especially useful when examining “overlay” circuits. Meaning in one orientation of the 1/4 wave plate can be observed, while another overlaid circuit will be visible when the 1/4 wave plate is rotated 90° degrees.



The Short UNIMAC Series features include:

  • Superb Optical Quality
  • 6.4 to 1 Zoom Ratio
  • Maintains excellent parfocality throughout zoom range
  • Variety of auxiliary lenses and polarizing filters
  • On screen video magnifications range from 20.8X to 172X or higher depending on camera
  • Wide range of accessories including stands, focusing, illumination, polarized accessories and camera adapters
  • Many configurations available

Short UNIMAC Macroscopes:
Short UNIMAC Series (Short-Back Focus) is a high performance direct-to-camera zoom lens system offer a wide array of features making them perfect for industrial, medical, educational and research applications. The Short UNIMAC series of macrozoom lenses couples directly to a CCD or CMOS video camera and allows a shorter profile facilitating use in situations where space is very restricted. These versatile modular lens systems are ideally suited for a variety of free standing or OEM applications. Compatible with digital or analog CCD and CMOS cameras.

Superb optical quality and mechanical flexibility allow the user to cover a wide spectrum of viewing needs. A variety of auxiliary lenses, focus blocks, illumination systems, digital camera adapters and other components allows you to easily customized the system for your specific situation.

The Short UNIMAC Series lenses have a 6.4:1 zoom ratio and maintain parfocality throughout their extended zoom range. The Short UNIMAC lenses are available in either a standard zoom configuration, or a detent zoom configuration, which is useful for calibration and measurement purposes.
