Key Components

  • EMZ-10H Binocular Head – The main optical unit that provides zoom magnification (0.7×–4.5×) and produces a clear 3D image using Greenough stereo optics.
  • MA522 Eyepieces – High eyepoint pair of 10× Super Widefield eyepieces that deliver a broad, clear view.
  • F Focus Block – A rack‑and‑pinion focus holder that lets you adjust focus smoothly and precisely with coarse focus control.
  • FA-4 Stand – Articulated, adjustable stand that lets you position the microscope head in many orientations over the work area, offering flexibility and ease of use for inspection, assembly, or manipulation tasks.

Optical Performance

  • Zoom Range: 0.7× – 4.5× (zoom ratio ~6.5:1)
  • System Magnification: ~7× to 45× with 10× eyepieces
  • Working Distance: 110 mm (4.3 in) — plenty of space between the objective and the subject for manipulation or tools.
  • Sharp, high-contrast stereo images
  • Excellent depth of field for 3D specimen viewing
  • High-eyepoint eyepiece compatibility (for comfortable viewing, even with glasses)

What It Does

Stereo zoom microscopes with high-eyepoint eyepieces are used for detailed, hands-on viewing of small objects where depth perception and comfort are important. They are common in electronics repair, manufacturing inspection, laboratory work, jewelry making, and forensics because they provide a clear 3D image that helps users manipulate tiny components accurately. The zoom capability allows smooth changes in magnification without swapping lenses, while the long working distance leaves room to use tools under the lens. High-eyepoint eyepieces make them especially suitable for long sessions and for people who wear glasses, since the full field of view remains visible without eye strain.





CLICK OR SCAN QR HERE!



Brochure       Video       Manual



NOTE: The versatility of a Meiji Techno Stereo Microscope is the ability to pick from a wide range of components to adapt to your unique application:
• Stereo Microscope Body (Zoom, Turret or Fixed)
• Eyepieces (Requires 2 of identical magnification)
• Stand (Pole stands, rigid arm stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands)
• Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
• Auxiliary Lens (Optional)

Made In Japan

ceisorohs

SKU: EMZ-10H + MA522 + F + FA-4 Microscope Configuration Category:

Description

EMZ-10H: Binocular Microscope Head + MA522: Eyepieces + F: Focus Block + FA-4: Stand

EMZ-10H: Microscope Head
The EMZ-10H is a new and improved high eyepoint model with an eye relief of 20.9mm designed for microscopists and for people who wear glasses. It is specially designed to give the user more clearance between their eyes and the microscope. The high eyepoint models also uses a newly designed eyepiece with a wider designed lens to compliment the high eyepoint models (MA522 10X, MA818 15X, MA819 20X) Optional rubber eye guards (MA906) are also available. The EMZ-10H body has a long 110mm working length, an increase focal depth and a wide field number which makes it perfect for all applications ranging from industry and biological fields to education and training. Despite these advanced capabilities, the microscope operation is simple. It features Greenough optics for enhance image flatness and contrast. As a result, views of three dimensional surfaces are sharp with excellent depth characteristic. The EMZ-10H offers high resolution observation in precision-oriented semi-conductor, popular for mounting onto bonders and probers, and offers superior performance at low cost. In addition to its compact design and versatility, a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Suitable for eyeglass users.

MA522: Eyepieces
MA522 Super Widefield Eyepiece is included, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only)

F: Focus Block
Focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.

FA-4: Triple Joint Articulating Stand
The Meiji Techno FA-4 Triple Joint Articulating Table Clamp Boom stand is an industrial type articulating arm stand with 20mm diameter drop down post for ready for a F & FX, FC focus holder which fits the standard 20mm drop down post Great for examining industrial parts and for inspection of larger or awkward shaped item, this articulating arm stand provides ultimate versatility without sacrificing stability. This articulated stand weighs about 21 lbs. and comes with a 15.25”, 387.35mm High Stainless Steel Pillar and 37″, 939mm Reaching-out length.

EMZ-10H Body Info:

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 0.7x – 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x – 45x  (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm – 5.1mm
Working distance: 110mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm – 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x – 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 45mm – 332mm (With auxiliary lenses and eyepieces)
Mounting: Fits 84.5mm Diameter Focus Holders
Auxiliary Lenses: 0.3x (326mm), 0.4x (247mm), 0.5x (194mm), 0.75x (127mm), 1.5x (64mm), and 2.0x (44mm) (optional)

MA522: Eyepieces

MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)

MA522 Super Widefield High Eyepoint 10X (for EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)
Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount.

This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)

F: Block

F - holder

Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies

FA-4: Triple Joint Articulating Stand

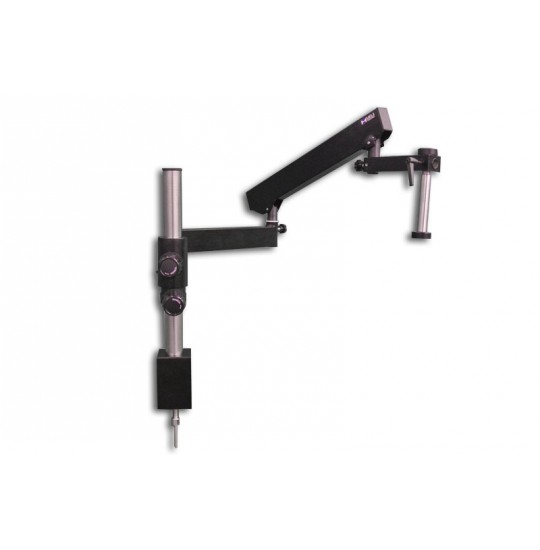

FA-4 Articulated Arm Stand with 20mm drop down post with table clamp

The Meiji Techno FA-4 Triple Joint Articulating Table Clamp Boom stand is an industrial type articulating arm stand with 20mm diameter drop down post for ready for a F & FX, FC focus holder which fits the standard 20mm drop down post Great for examining industrial parts and for inspection of larger or awkward shaped item, this articulating arm stand provides ultimate versatility without sacrificing stability. This articulated stand weighs about 21 lbs. and comes with a 15.25”, 387.35mm High Stainless Steel Pillar and 37″, 939mm Reaching-out length.

Included:
• Articulating Stand with table Clamp for Examination of Large Working Area
• 37″, 939mm Reaching-out Length
• 15.25”, 387.35mm High Stanless Steel Pillar
• 1.5”, 37mm pillar post diameter
• 16 mm diameter bonder arm mounting pin (5/8”)
• Locking handles keep the Articulated stand in position
• Triple –Joint Articulating Design for Flexibility
• Accepts F, FX, FC tilting coarse focusing holder with 84.2 mm round diameter opening
• FA-4/SP-1 – 20mm drop down post for use with focus blocks with a 20mm mounting hole

Stereo Terminology

OPTIONAL ILLUMINATOR ACCESSORIES

RINGLIGHTS (OPTIONAL)
Model MA962 MA964 MA961D/S/ESD (SLIMLINE) MA961D/40 (40 LEDs) MA961D/80/ESD (80 LEDs) MA305/100
Light Type LED LED LED LED LED Fluorescent
White Light Options Daylight Daylight Daylight,
Cool White,
Warm White		 Daylight,
Cool White,
Warm White		 Daylight,
Cool White,
Warm White,		 Daylight,
Warm White
Number of Bulbs 56 60 40 40 80 1
Wattage 3.5W 10W 4W N/A 5W 8W
Input 100V-240V 100V-240V 100V-240V 100V-240V 100V-240V 100V-240V
Output 12V DC, 0.5A 10W 24V, -0.75A 18W max 24V, -0.75A 18W max 24V, -0.75A 18W max 8W
Inner Diameter 57mm (2.24″) 54.6mm (2.15″) 66.8mm (2.63″) 66.8mm (2.63″) 66.8mm (2.63″) 48mm (1.89″)
Outer Diameter 95.5mm (3.76″) 90mm (3.54″) 101mm (4.01″) 97mm (3.81″) 105mm (4.11″) 90mm (3.54″)
Height 31.75mm (1.25″) 22.8mm (0.9″) 28mm (1.09″) 26mm (1.02″) 26mm (1.02″) 15.8mm (0.662″)
Length 133.8mm (5.27″) 90mm (3.54″) 135mm (5.30″) 151mm (5.94″) 125mm (4.92″) 109mm (4.29″)
Needs Adapter Mount for EMZ Series (MA302) Yes No Yes No No Yes
Needs Adapter Mount for RZ Series (MA308) Yes No Yes No No Yes
DUAL ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model FL151 FT191 FL-5000-DG FQ151 FQ-5000-DG TPI6IL
Light Type  Halogen Halogen LED Halogen LED LED
Input 115 V AC (230 V AC available) 120 V AC (230 V AC available) 110 V AC (240V available) 115 V AC (220V available) 110 V AC (220V available) 90-264 VAC
Wattage 150 Watt, 21 V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V 5 Watt
Output 1750 Lumens at fiber optic plane 200 Watt (Max) 2000+ Lumens (12.7mm aperture) 150 Watt 80 Watt 500 Lumens
Fuse Type 3 Amp, 3A slow blow 2, 5 Amp slow blow 0.5A-1.2A 3Amp 2Amp N/A
Color Temperature 3200K 3200K 5000K 3250K 5000K-8300K 6500K
Input Fiber Diameter 15mm or 25mm (optional) 15mm or 25mm (optional) 15mm or 25mm (optional) 15.8mm (0.625″) (other sizes available) 15.8mm (0.625″) N/A
Light Guide Length 584mm (23″) self-supporting 584mm (23″) self-supporting 584mm (23″) self-supporting 609mm (24″) obedient arm 609mm (24″) obedient arm 482.60 mm (19″)
Active Fiber Bundle 0.20″ (5mm) 0.31″ (8mm) 0.20″ (5mm) 0.265” (4.76mm) 0.265” (4.76mm) N/A
Dimensions 6.8” (W) X 5” (H) X 8.3” (D) 8” (W) X 4.75” (H) X 7” (D) 7.0” (W) X 4.9” (H) X 8.8” (D) 7.0” (W) X 6.5” (H) X 7.5” (D) 4.75″ (W) X 6″ (H) X 9″ (D) 4.68″ (Diameter) x 19 ¾ ” (L) x 2.20 (Base Height)
Weight 7.75lbs 13.5lbs 6lbs 7.5lbs 7 lbs 5.25lbs
ANNULAR ARM  FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model FL152 FT192 FL-5000-RL FQ152 FQ-5000-DG
Light Type  Halogen Halogen LED Halogen LED
Input 115 V AC (230 V AC available) 120 V AC (230 V AC available) 110 V AC (240V available) 115 V AC (220V available) 110 V AC (220V available)
Wattage 150 Watt, 21 V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V 150 Watt, 21V
Output 1750 Lumens at fiber optic plane 200 Watt (Max) 2000+ Lumens (12.7mm aperture) 150 Watt 80 Watt
Fuse Type 3 Amp, 3A slow blow 2, 5 Amp slow blow 0.5A-1.2A 3Amp 2Amp
Color Temperature 3200K 3200K 5000K 3250K 5000K-8300K
Input Fiber Diameter 15mm or 25mm (optional) 15mm or 25mm (optional) 15mm or 25mm (optional) 15.8mm (0.625″) (other sizes available) 15.8mm (0.625″)
Light Guide Length 914.4mm (36″) 914.4mm (36″) 914.4mm (36″) 914.4mm (36″) 914.4mm (36″)
Active Fiber Bundle 9.5mm (0.373”) 10mm (0.394″) 9.5mm (0.373”) 9.45mm (0.371″) 9.45mm (0.371″)
Diameter Ring Aperture 60.2mm (2.37″) 60mm (2.36″) 60.2mm (2.37″) 60mm (2.36″) 60mm (2.36″)
Dimensions 6.8” (W) X 5” (H) X 8.3” (D) 8” (W) X 4.75” (H) X 7” (D) 7.0” (W) X 4.9” (H) X 8.8” (D) 7.0” (W) X 6.5” (H) X 7.5” (D) 4.75″ (W) X 6″ (H) X 9″ (D)
Weight 7.75lbs 13.5lbs 6lbs 7.5lbs 7 lbs
SINGULAR ARM FIBER OPTIC ILLUMINATORS (OPTIONAL)
Model FL153 FT193 FL-5000-SG
Light Type  Halogen Halogen LED
Input 115 V AC (230 V AC available) 120 V AC (230 V AC available) 110 V AC (240V available)
Wattage 150 Watt, 21 V 150 Watt, 21V 150 Watt, 21V
Output 1750 Lumens at fiber optic plane 200 Watt (Max) 2000+ Lumens (12.7mm aperture)
Fuse Type 3 Amp, 3A slow blow 2, 5 Amp slow blow 0.5A-1.2A
Color Temperature 3200K 3200K 5000K
Input Fiber Diameter 15mm or 25mm (optional) 15mm or 25mm (optional) 15mm or 25mm (optional)
Light Guide Length 457.2mm (18″) 508mm (24″) 457.2mm (18″)
Active Output Fiber Bundle 6.35mm (0.25″) 6.35mm (0.25″) 6.35mm (0.25″)
Dimensions 6.8” (W) X 5” (H) X 8.3” (D) 8” (W) X 4.75” (H) X 7” (D) 7.0” (W) X 4.9” (H) X 8.8” (D)
Weight 7.75lbs 13.5lbs 6lbs

EM STEREO SERIES BROCHURE

(CLICK TO DOWNLOAD FULL BROCHURE)

Additional information

Specifications

Includes:
• Binocular Body (EMZ-10H)
• 10X Eyepiece (MA522)
• Focus Block (F)
• Triple Joint Articulating Stand (FA-4)
• Meiji Techno Dust Cover (MA703)
• Rubber Eyeguards/Eyeshields (Paired) (MA600)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty Card

Product Information:
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Details

Modular Flexibility:
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.

Superb Optics:
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.

Rugged Dependability:
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.

Ergonomic Design:
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.

Applications:
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!
